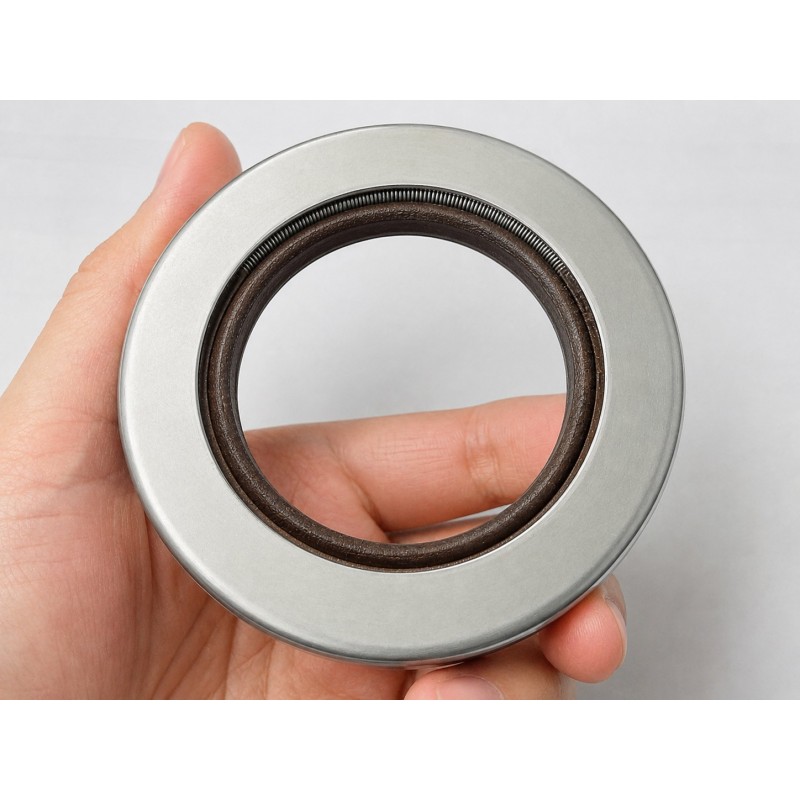

The SCHNIEDER Oil Seal 2.125x3.128x0.500 M/L LEATHER is designed for rotary shaft applications requiring lubricant retention around a 2.125-inch shaft within a 3.128-inch housing bore.

This seal uses an industrial leather sealing element supported by a metal case or structural carrier. Properly conditioned and lubricated leather can conform to the shaft surface and accommodate minor shaft-surface irregularities, which is one reason leather seals remain useful in legacy gearboxes, transmissions, agricultural equipment, and industrial machinery.

The M/L profile is manufacturer-specific. The exact leather-lip geometry, metal support arrangement, outside-case construction, lip orientation, and installation direction should be verified against the original SCHNIEDER seal, technical drawing, or equipment specification before replacement.

Leather sealing elements should generally not operate dry. Adequate lubrication at the sealing interface is important to reduce friction, heat generation, hardening, and premature wear.

Typical compatible lubricant/service environments include:

• Mineral oils
• Gear oils
• Bearing oils
• Bearing grease
• Petroleum-based lubricants
• General industrial lubricated shaft service

The usable temperature and shaft-speed range depend on the leather grade, lubricant type, shaft surface finish, alignment, and actual operating conditions.

The inch dimensions convert approximately to:

Shaft diameter: 2.125 inches or approximately 53.98 mm

Housing diameter: 3.128 inches or approximately 79.45 mm

Seal width: 0.500 inch or 12.70 mm

The 2.125 × 3.128 × 0.500-inch configuration is suitable for medium-size bearing housings, gearboxes, transmissions, industrial drives, agricultural machinery, and legacy equipment originally designed for this type of leather shaft seal.

⚙️ Applications

• Industrial gearboxes
• Bearing housings
• Mechanical transmissions
• Agricultural machinery
• Construction equipment
• Conveyor drive assemblies
• Industrial shaft assemblies
• Older mechanical equipment
• Legacy rotating machinery
• OEM restoration applications

🎯 Benefits

✔ Genuine industrial leather sealing element

✔ Suitable for lubricated rotary shaft applications

✔ Can conform to minor shaft-surface irregularities

✔ Suitable for 2.125-inch shaft assemblies

✔ Metal-supported M/L construction

✔ Well suited to maintenance of legacy machinery

✔ Suitable for slow-to-moderate shaft speeds when properly lubricated

✔ Useful for repair, overhaul, and restoration work

✔ Replacement ready when dimensions and M/L construction match

🧠 Technical Insight

• SCHNIEDER M/L Leather Seal Reference
• Inch-Size Rotary Shaft Seal
• Oil-Treated Industrial Leather
• Metal-Supported Seal Construction
• Lubrication Is Essential
• Suitable for Slow-to-Moderate Speeds
• Approximately 53.98 mm Shaft Diameter
• Exact M/L Cross-Section Must Be Verified

✅ Key Features

• SCHNIEDER Industrial Seal
• M/L Profile Reference
• Genuine Leather Sealing Element
• Metal-Supported Construction
• Inch-Size Dimensions
• 2.125x3.128x0.500 Configuration
• Legacy Equipment Replacement
• Cross-Reference Support Available

📊 Specifications

Brand: SCHNIEDER

Model / Profile: M/L

Size: 2.125 × 3.128 × 0.500 inch

Metric Equivalent: Approximately 53.98 × 79.45 × 12.70 mm

Type: Industrial Leather Rotary Shaft Oil Seal

Material: Genuine Oil-Treated Industrial Leather

Profile: M/L

Construction: Manufacturer-Specific Metal-Supported Leather Shaft-Seal Construction

Lip Design: Leather sealing lip; verify exact M/L lip geometry and orientation against the original seal or technical drawing

Dust Lip: Not assumed; verify from the actual M/L construction

Spring Type: No spring unless the original seal specifically indicates one

Shaft Diameter (ID): 2.125 inches / approximately 53.98 mm

Housing Diameter (OD): 3.128 inches / approximately 79.45 mm

Width: 0.500 inch / 12.70 mm

Pressure Capability: Primarily low-pressure rotary shaft-sealing service unless otherwise specified

Lubrication: Oil or grease lubrication is generally required; leather should not normally operate dry

Temperature Range: Depends on leather grade, lubricant, shaft speed, and actual operating conditions; verify application-specific limits

Speed Consideration: Generally best suited to slow-to-moderate shaft speeds with adequate lubrication

Installation Consideration: Confirm shaft finish, housing-bore condition, lip orientation, installation depth, and pre-lubricate the leather sealing surface before startup where appropriate

Application Class: Industrial Bearing, Gearbox, Transmission, and Legacy Rotating Equipment

Standard: Inch-Size Specialized Leather Shaft Seal

🔁 Equivalent

Suitable replacement or cross-reference candidate for compatible:

• SCHNIEDER M/L Leather Shaft Seal
• SCHNIEDER 2.125x3.128x0.500 Oil Seal
• 53.98x79.45x12.70 Leather Seal
• 2.125-Inch Shaft Leather Oil Seal
• Metal-Supported Leather Shaft Seal
• Industrial Leather Bearing Seal
• Gearbox Leather Oil Seal
• Transmission Leather Shaft Seal
• Legacy Equipment Oil Seal
• OEM M/L Leather Seal

The same dimensions alone do not guarantee interchangeability. The replacement must match the original M/L cross-section, leather-lip geometry, lip orientation, metal support arrangement, outside-case construction, installation direction, leather grade, lubricant requirements, and operating conditions.

(Always verify dimensions, M/L construction, leather-lip orientation, shaft finish, housing condition, installation depth, lubricant compatibility, shaft speed, temperature, runout, and operating conditions before ordering.)

📦 Availability

✅ In Stock

🚚 Fast Delivery Available

🌎 Worldwide Shipping Available

📦 MOQ: 1 Piece

🏭 Suitable for gearbox overhaul, bearing-housing maintenance, transmission repair, agricultural-machinery servicing, construction-equipment maintenance, conveyor-drive repair, legacy-equipment restoration, and compatible OEM replacement applications.
