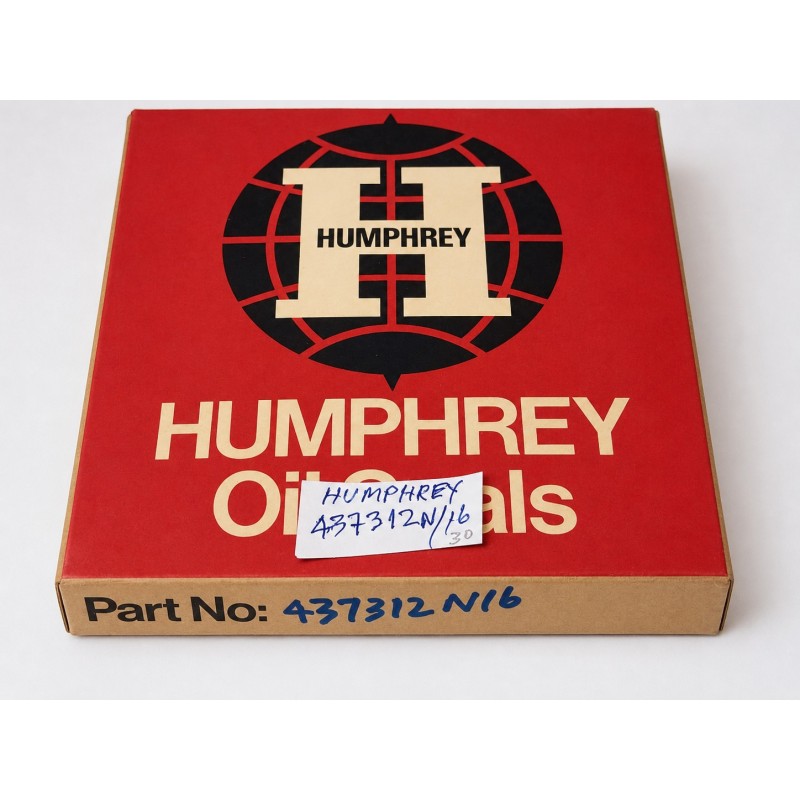

The HUMPHREY Oil Seal 3.375x4.375x0.500 TCN NBR is designed for industrial rotary shaft applications requiring lubricant retention around a 3.375-inch shaft within a 4.375-inch housing bore.

Installed between the rotating shaft and stationary housing, the sealing element maintains controlled radial contact with the shaft surface. This helps reduce leakage of compatible oil or grease while protecting bearings, gears, pumps, transmissions, and other internal rotating components from dust, moisture, and external contamination.

The product is identified by the HUMPHREY manufacturer designation TCN. This is a manufacturer-specific profile code. The exact sealing-lip geometry, number of lips, dust-exclusion arrangement, outside-case construction, internal reinforcement, spring configuration, lip orientation, and installation direction should be verified against the original seal, technical drawing, or equipment specification before replacement.

Manufactured from NBR (Nitrile Butadiene Rubber), the sealing element is generally suitable for:

• Mineral oils
• Gear oils
• Hydraulic oils
• Bearing grease
• Petroleum-based lubricants
• General industrial lubricating fluids

NBR provides good resistance to petroleum-based oils, grease, abrasion, and mechanical wear under normal industrial operating conditions. Compatibility should be verified before use with aggressive chemicals, fuels, continuous high temperatures, ozone-rich environments, or specialized synthetic lubricants.

The inch dimensions convert approximately to:

Shaft diameter: 3.375 inches or 85.73 mm

Housing diameter: 4.375 inches or 111.13 mm

Seal width: 0.500 inch or 12.70 mm

The 3.375 × 4.375 × 0.500-inch configuration is suitable for medium-to-large bearing housings, industrial gearboxes, pumps, transmissions, conveyor drives, and legacy machinery using an inch-size shaft-sealing arrangement.

For this size range, shaft finish, shaft hardness, housing alignment, concentricity, runout, installation depth, and correct lubrication at the sealing interface are important for reliable performance and service life.

⚙️ Applications

• Industrial gearboxes
• Large bearing housings
• Industrial pumps
• Mechanical transmissions
• Power transmission systems
• Agricultural machinery
• Construction equipment
• Conveyor drive assemblies
• Legacy industrial equipment
• OEM rotating machinery

🎯 Benefits

✔ Helps retain compatible oil or grease

✔ Protects bearings and internal components

✔ Oil-resistant NBR sealing material

✔ Suitable for 3.375-inch shaft assemblies

✔ Manufacturer-specific HUMPHREY TCN profile

✔ Good resistance to abrasion and wear

✔ 0.500-inch axial width

✔ Suitable for maintenance and overhaul work

✔ Replacement ready when dimensions and profile match

🧠 Technical Insight

• HUMPHREY TCN Seal Reference
• Large Inch-Size Rotary Shaft Seal
• NBR Sealing Material
• Manufacturer-Specific TCN Profile
• Radial Shaft-Sealing Function
• Low-Pressure Lubricant Retention
• 85.73 mm Shaft Diameter
• Exact TCN Cross-Section Must Be Verified

✅ Key Features

• HUMPHREY Industrial Quality
• TCN Profile Reference
• Oil-Resistant NBR Material
• Large Inch-Size Construction
• 3.375x4.375x0.500 Dimensions
• Suitable for Compatible Oil and Grease
• Industrial Replacement Seal
• Cross-Reference Support Available

📊 Specifications

Brand: HUMPHREY

Model / Profile: TCN

Size: 3.375 × 4.375 × 0.500 inch

Metric Equivalent: Approximately 85.73 × 111.13 × 12.70 mm

Type: Large Industrial Rotary Shaft Oil Seal

Material: NBR (Nitrile Butadiene Rubber)

Profile: TCN

Construction: Manufacturer-Specific HUMPHREY TCN Rotary Shaft-Seal Construction

Lip Design: TCN profile; verify the exact sealing-lip geometry, number of lips, and orientation against the original seal or technical drawing

Dust Lip: Verify from the actual TCN cross-section

Spring Type: Verify from the actual seal construction

Shaft Diameter (ID): 3.375 inches / 85.73 mm

Housing Diameter (OD): 4.375 inches / 111.13 mm

Width: 0.500 inch / 12.70 mm

Pressure Capability: Low-pressure rotary shaft-sealing service unless otherwise specified

Lubrication: Compatible oil and grease

Temperature Range: Typically approximately -30°C to +100°C for standard NBR; verify the actual compound, lubricant, shaft speed, and operating conditions

Speed Consideration: Permissible speed depends on shaft diameter, surface finish, lubrication, temperature, alignment, concentricity, runout, and NBR compound

Installation Consideration: Confirm shaft finish, shaft hardness, housing-bore condition, installation depth, lip direction, concentricity, and protection from sharp shaft edges before fitting

Application Class: Medium-to-Large Industrial Bearing and Rotating Equipment

Standard: Inch-Size Specialized Industrial Seal

🔁 Equivalent

Suitable replacement or cross-reference candidate for compatible:

• HUMPHREY TCN NBR Rotary Shaft Seal
• HUMPHREY 3.375x4.375x0.500 Oil Seal
• 85.73x111.13x12.70 Rotary Seal
• 3.375-Inch Shaft Oil Seal
• Large Inch-Size NBR Rotary Seal
• Industrial Bearing Housing Seal
• Industrial Gearbox Shaft Seal
• Industrial Pump Shaft Seal
• OEM TCN Profile Oil Seal
• Industrial NBR Shaft Seal

The same dimensions alone do not guarantee interchangeability. The replacement must match the original TCN cross-section, sealing-lip geometry, lip orientation, outside-case construction, reinforcement arrangement, spring configuration, installation direction, material compound, and operating requirements.

(Always verify dimensions, TCN-profile geometry, lip direction, shaft finish, shaft hardness, housing condition, installation depth, lubricant compatibility, rotational speed, temperature, alignment, concentricity, runout, pressure, and operating conditions before ordering.)
