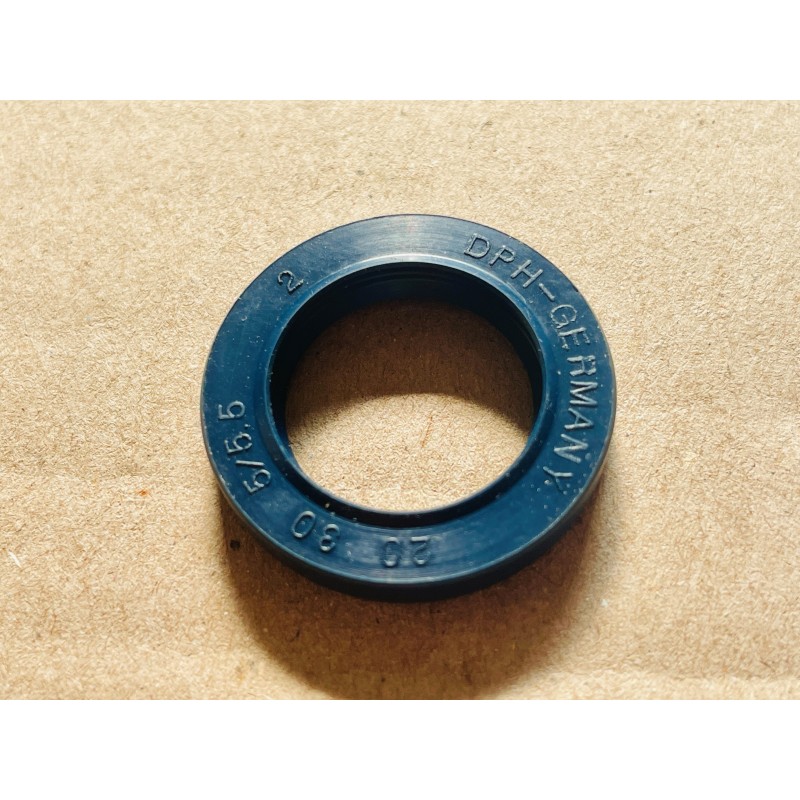

The DPH Oil Seal 20x30x5/5.5 GBP NBR is engineered for industrial applications requiring reliable sealing performance under elevated pressure conditions.

The GBP profile is a high-pressure oil seal design developed for radial shaft sealing applications. It incorporates a specially designed primary sealing lip energized by a garter spring together with an additional dust lip for contamination protection. Compared with conventional GP or TC oil seals, the GBP design offers significantly improved pressure capability while maintaining excellent sealing performance.

Its rubber-covered metal case construction improves static sealing against the housing and provides secure installation. The integrated dust lip helps prevent dirt, dust, moisture, and contaminants from entering the sealing area, protecting bearings and rotating components from premature wear.

Manufactured from premium NBR (Nitrile Butadiene Rubber), the sealing element offers excellent resistance to lubricating oils, hydraulic fluids, grease, and petroleum-based lubricants. NBR remains the most widely used sealing material for industrial oil seals due to its excellent oil resistance, wear resistance, flexibility, and economic value.

With dimensions of 20 x 30 x 5/5.5 mm, this seal is commonly used in hydraulic pumps, gearboxes, industrial motors, pressure-lubricated systems, agricultural machinery, and industrial rotating equipment.

⚙️ Applications

• Hydraulic pumps
• Hydraulic power units
• Industrial gearbox
• Electric motors
• Agricultural machinery
• Pressure lubrication systems
• Industrial rotating equipment
• Machine tools
• OEM machinery
• General industrial equipment

🎯 Benefits

✔ High-pressure sealing performance

✔ Excellent oil retention

✔ Double lip contamination protection

✔ Protect against dust and moisture

✔ Extend bearing and shaft life

✔ Reduce lubricant leakage

✔ Lower maintenance costs

✔ Improve equipment reliability

🧠 Technical Insight

• GBP Profile = High Pressure Design + Dust Lip
• Pressure capability up to 10 Bar (1 MPa)
• Rubber-covered OD improves housing sealing
• Garter spring maintains constant sealing force
• NBR provides excellent oil and grease resistance
• Suitable for hydraulic and pressure-lubricated systems

✅ Key Features

• GBP High Pressure Design
• Double Lip Construction
• Additional Dust Lip
• Spring Loaded Sealing Lip
• Premium NBR Material
• OEM Replacement Ready

📊 Specifications

Brand: DPH

Model: GBP

Size: 20 x 30 x 5/5.5 mm

Type: High Pressure Rotary Shaft Oil Seal

Material: NBR (Nitrile Rubber)

Construction: Rubber Covered Metal Case

Spring Type: Garter Spring

Shaft Diameter (ID): 20 mm

Housing Diameter (OD): 30 mm

Width: 5 / 5.5 mm

Pressure Capability: Up to 10 Bar (1 MPa)

Application Class: High Pressure Industrial Service

🔁 Equivalent

Suitable replacement for:

FP GBP Series

SKF High Pressure Oil Seal

NOK Pressure Oil Seal

CR Oil Seal

CFW High Pressure Seal

KACO Oil Seal

Dichta Oil Seal

(Always verify dimensions and seal profile before ordering.)
