P NBR is engineered for industrial and hydraulic applications where standard oil seals cannot provide sufficient sealing performance under elevated pressure conditions.

The GBP profile is specifically designed for pressure applications and incorporates a reinforced sealing geometry that allows the seal to withstand internal pressures significantly higher than conventional rotary shaft oil seals. The spring-loaded primary lip maintains consistent sealing force against the shaft while the additional dust lip prevents dirt, moisture, and contaminants from entering the system.

The rubber-covered metal case construction improves static sealing between the seal and housing while providing secure installation and excellent vibration resistance. This design makes the seal suitable for hydraulic systems, industrial pumps, gearboxes, and lubrication systems operating under pressure.

Manufactured from premium NBR (Nitrile Butadiene Rubber), the sealing element provides excellent resistance to lubricating oils, hydraulic fluids, grease, and petroleum-based lubricants. NBR remains the preferred sealing material for industrial oil seals due to its excellent balance of oil resistance, wear resistance, flexibility, and economic value.

With dimensions of 20 x 30 x 6 mm, this seal is commonly used in hydraulic pumps, hydraulic power units, industrial gearboxes, machine tools, agricultural machinery, and industrial rotating equipment.

⚙️ Applications

• Hydraulic pumps
• Hydraulic power units (HPU)
• Industrial gearbox
• Machine tools
• Agricultural machinery
• Industrial motors
• Lubrication systems
• Power transmission equipment
• OEM machinery
• Industrial rotating equipment

🎯 Benefits

✔ High-pressure sealing performance

✔ Excellent oil retention

✔ Double lip contamination protection

✔ Protect against dust and moisture

✔ Extend bearing and shaft life

✔ Reduce lubricant leakage

✔ Lower maintenance costs

✔ Improve equipment reliability

🧠 Technical Insight

• GBP Profile = High Pressure Design + Dust Lip
• Pressure capability up to 10 Bar (1 MPa)
• Reinforced sealing geometry for pressure applications
• Rubber-covered OD improves housing sealing
• NBR provides excellent oil and grease resistance
• Suitable for hydraulic and pressure lubrication systems

✅ Key Features

• GBP High Pressure Design
• Double Lip Construction
• Additional Dust Lip
• Spring Loaded Sealing Lip
• Premium NBR Material
• OEM Replacement Ready

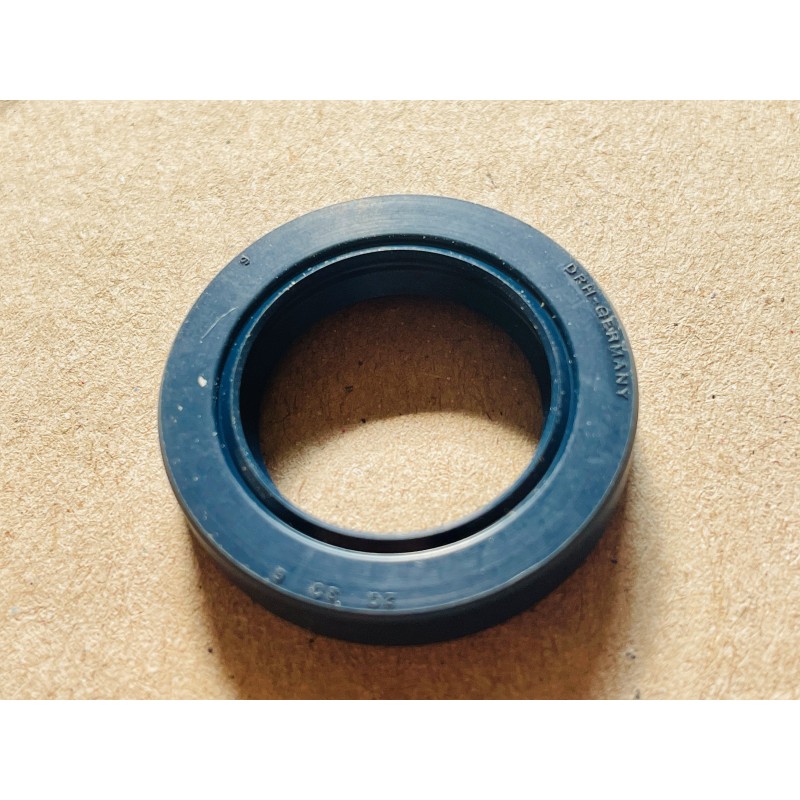

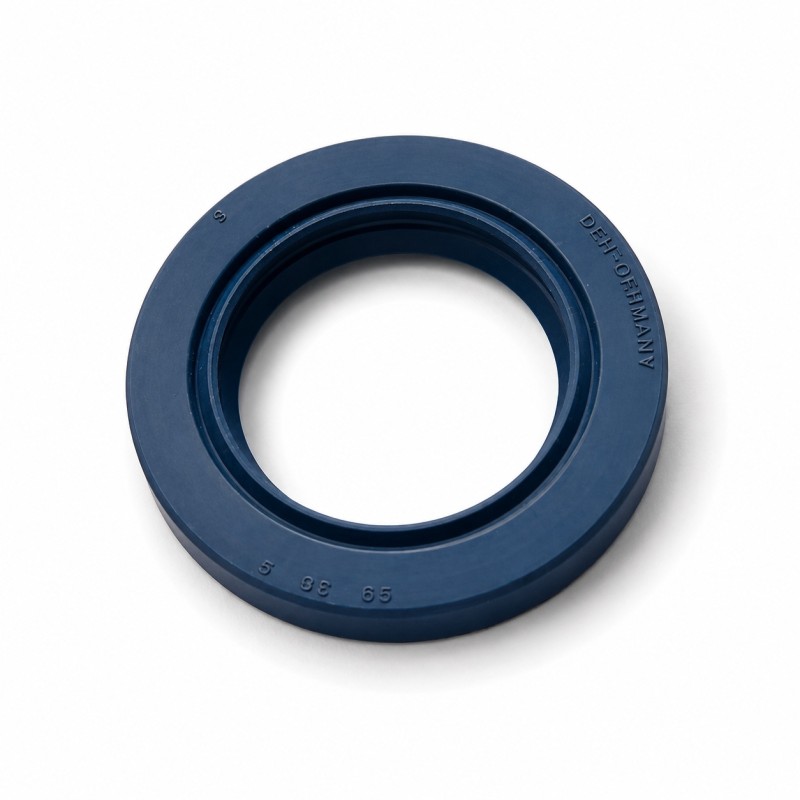

📊 Specifications

Brand: DPH

Model: GBP

Size: 20 x 30 x 6 mm

Type: High Pressure Rotary Shaft Oil Seal

Material: NBR (Nitrile Rubber)

Construction: Rubber Covered Metal Case

Spring Type: Garter Spring

Shaft Diameter (ID): 20 mm

Housing Diameter (OD): 30 mm

Width: 6 mm

Pressure Capability: Up to 10 Bar (1 MPa)

Application Class: High Pressure Industrial Service

🔁 Equivalent

Suitable replacement for:

FP GBP Series

SKF High Pressure Oil Seal

NOK Pressure Oil Seal

CR Oil Seal

CFW High Pressure Seal

KACO Oil Seal

DICHTA Oil Seal

(Always verify dimensions and seal profile before ordering.)
