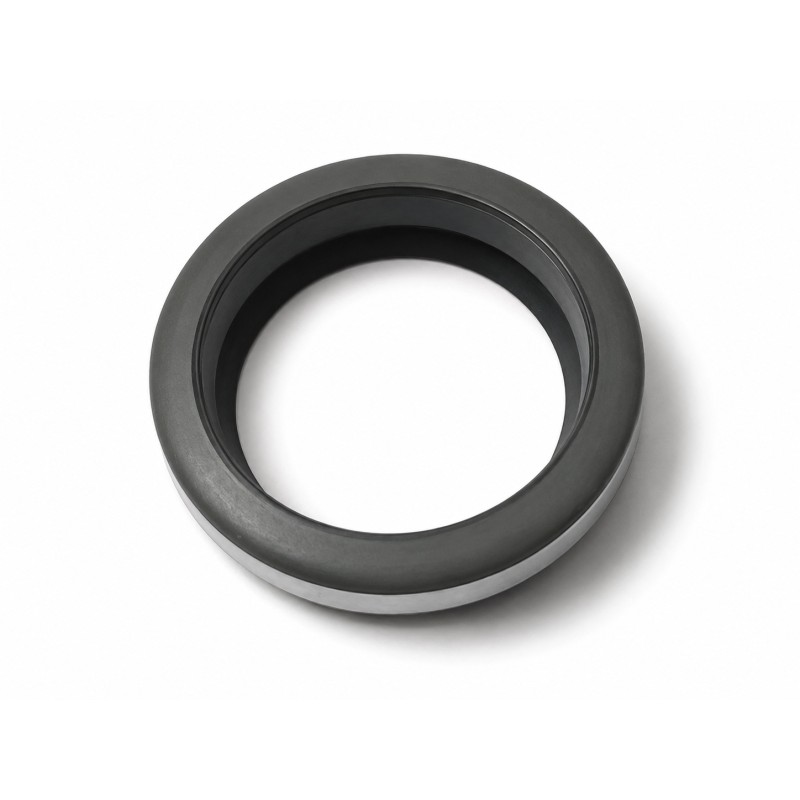

The FP 28x38x5/8 RM NBR Oil Seal is engineered for rotating equipment requiring dependable sealing performance in compact installation spaces. It is widely used in industrial pumps, electric motors, gearboxes, hydraulic systems, compressors, agricultural machinery, and OEM equipment where efficient lubricant retention and reliable operation are essential.

The RM Profile features a rubber-covered metal case combined with a spring-loaded primary sealing lip. The rubber-covered outer diameter improves sealing between the oil seal and housing while compensating for minor bore imperfections, ensuring a secure fit and minimizing leakage around the outside diameter.

An integrated garter spring continuously maintains radial sealing force against the rotating shaft, effectively preventing lubricant leakage while protecting bearings, shafts, and internal components from premature wear.

Manufactured from premium NBR (Nitrile Butadiene Rubber), this seal provides excellent resistance to:

• Mineral oils
• Hydraulic oils
• Gear oils
• Lubricating grease
• Petroleum-based lubricants

NBR offers excellent abrasion resistance, elasticity, and long-term durability for general industrial applications. Typical operating capability is up to 0.5 Bar, with operating temperatures ranging from -40°C to +100°C, depending on shaft speed, lubrication, and operating conditions.

With dimensions of 28 × 38 × 5/8 mm, this oil seal is commonly installed in electric motors, industrial pumps, speed reducers, hydraulic equipment, compressors, conveyor systems, agricultural machinery, and OEM rotating machinery.

⚙️ Applications

• Electric motors
• Industrial pumps
• Industrial gearboxes
• Hydraulic equipment
• Air compressors
• Speed reducers
• Agricultural machinery
• Conveyor systems
• Power transmission equipment
• OEM machinery

🎯 Benefits

✔ Excellent oil retention

✔ Reliable shaft sealing

✔ Rubber-covered OD improves housing sealing

✔ Spring-loaded sealing performance

✔ Protects bearings and shafts

✔ Excellent wear resistance

✔ Compact design for limited installation space

✔ Long service life

✔ OEM quality replacement

🧠 Technical Insight

• RM Profile Design
• Rubber Covered Metal Case
• Spring Loaded Main Lip
• Premium NBR Material
• Excellent Oil Resistance
• Oil & Grease Compatible
• Compact Rotary Shaft Seal
• Reliable Industrial Sealing

✅ Key Features

• FP Industrial Quality
• RM Profile
• Rubber Covered OD
• Premium NBR Material
• Spring Loaded Sealing Lip
• Excellent Wear Resistance
• OEM Replacement Ready
• Long Service Life

📊 Specifications

Brand: FP

Model: RM

Size: 28 × 38 × 5/8 mm

Type: Rotary Shaft Oil Seal

Material: NBR (Nitrile Butadiene Rubber)

Profile: RM

Construction: Rubber Covered Metal Case

Lip Design: Spring Loaded Main Lip

Dust Lip: None

Spring Type: Garter Spring

Shaft Diameter (ID): 28 mm

Housing Diameter (OD): 38 mm

Width: 5 / 8 mm

Pressure Capability: Up to 0.5 Bar

Lubrication: Oil & Grease

Temperature Range: -40°C to +100°C

Application Class: General Industrial Service

Standard: Metric Oil Seal

🔁 Equivalent

Suitable replacement for:

• SKF Oil Seal
• NOK Oil Seal
• CR Chicago Rawhide Oil Seal
• Freudenberg Oil Seal
• Simrit Oil Seal
• CFW Rotary Shaft Seal
• KACO Oil Seal
• DICHTOMATIK Oil Seal
• Garlock Oil Seal
• OEM Rotary Shaft Oil Seal

(Always verify dimensions and seal profile before ordering.)

📦 Availability

✅ In Stock

🚚 Fast Delivery Available

🌎 Worldwide Shipping Available

📦 MOQ: 1 Piece

🏭 Suitable for electric motor repair, gearbox overhaul, industrial pump maintenance, hydraulic equipment service, compressor repair, and OEM replacement applications.
