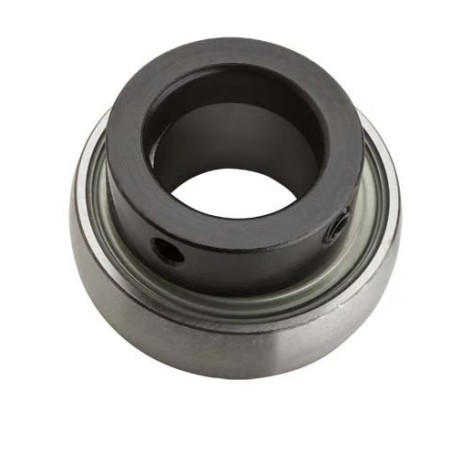

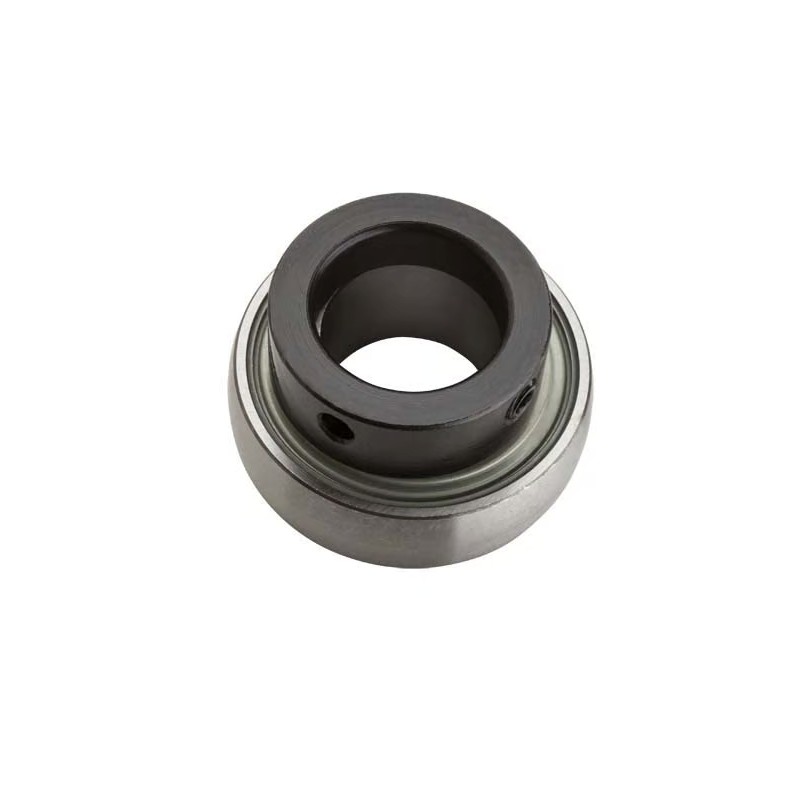

The BCA NPS008RPC is a Ball Insert Bearing – Standard Duty using an eccentric locking collar to secure the bearing to the shaft.

The bearing is associated with BCA / NTN Bearing Corp. of America and uses a narrow-series extended-inner-ring arrangement, where the inner ring projects predominantly to one side to reduce axial installation space.

The eccentric collar locking method works by rotating the collar relative to the eccentric extension on the bearing inner ring and then securing it in position. This provides positive shaft locking without requiring an adapter sleeve.

Key dimensional envelope:

Bore Diameter: 0.5000 in / 12.70 mm

Outer Diameter: 1.5748 in / 40.00 mm

Inner Ring Width: 0.7480 in / 19.00 mm

Overall Width including Locking Collar: 1.1260 in / 28.60 mm

The bearing uses hardened steel construction together with double nitrile rubber sealing, making it suitable for standard-duty industrial environments where dust, dirt, and grease retention are important.

⚙️ Applications

• Conveyor systems
• Material-handling equipment
• Fans and blowers
• Agricultural machinery
• Packaging machinery
• Light industrial drives
• Roller assemblies
• Small shaft support systems
• OEM mounted-bearing units
• General maintenance and replacement

🎯 Benefits

✔ Compact 1/2 inch bore insert bearing

✔ Standard-duty construction

✔ Eccentric locking collar

✔ Narrow-series configuration

✔ Single-side extended inner ring

✔ Double nitrile rubber seals

✔ Helps retain lubricant

✔ Helps exclude dust and contamination

✔ Suitable for compact mounted-bearing applications

🧠 Technical Insight

• BCA NPS008RPC
• Ball Insert Bearing
• Standard Duty
• Eccentric Locking Collar
• 1/2 in Bore
• 40 mm Outside Diameter
• 19 mm Inner Ring Width
• 28.6 mm Overall Width

✅ Key Features

• BCA Industrial Bearing
• Model NPS008RPC
• Standard-Duty Insert Bearing
• Eccentric Collar Locking
• Narrow-Series Design
• Double Nitrile Rubber Seals
• Hardened Steel Construction
• Compact Mounted-Bearing Application

📊 Specifications

Brand: BCA / NTN Bearing Corp. of America

Model / Bearing Number: NPS008RPC

Product Type: Ball Insert Bearing

Duty Class: Standard Duty

Locking Method: Eccentric Locking Collar

Series Configuration: Narrow Series

Inner Ring: Extended primarily on one side

Bore Diameter (d): 1/2 in / 0.5000 in / 12.70 mm

Outer Diameter (D): 1.5748 in / 40.00 mm

Inner Ring Width (B): 0.7480 in / 19.00 mm

Overall Width with Collar (B1): 1.1260 in / 28.60 mm

Rolling Elements: Ball

Bearing Type: Insert Ball Bearing

Material: Hardened Steel

Seal Type: Double Nitrile Rubber Seal

Seal Function: Helps exclude dust and contamination while retaining lubricant

Shaft Locking: Eccentric collar locks the inner ring to the shaft

Load Capability: Primarily radial load with limited axial-load capability depending on application

Lubrication: Grease-lubricated insert-bearing configuration

Internal Clearance: Verify original BCA / NTN specification

Cage: Verify actual production specification

Speed Rating: Verify manufacturer data for the exact NPS008RPC execution

Temperature Range: Depends on nitrile seal compound, lubricant, fit, load, and operating environment

Shaft Fit: Nominal 1/2 in shaft

Housing Fit: Must match a compatible insert-bearing housing

Installation Consideration: Position the bearing correctly, rotate the eccentric collar in the shaft-rotation direction to lock, secure the collar, and confirm shaft/housing alignment before operation

🔁 Equivalent

Suitable replacement or cross-reference candidates should match:

• BCA NPS008RPC
• BCA 1/2 in Eccentric Lock Insert Bearing
• NTN/BCA Standard-Duty Insert Bearing
• 1/2 in Bore Insert Bearing
• 40 mm OD Insert Bearing
• Eccentric Collar Bearing
• Narrow-Series Insert Bearing
• Double-Sealed Insert Bearing
• Mounted Bearing Insert
• Standard-Duty Shaft Bearing

Important Cross-Reference Consideration

A replacement should not be selected from bore size alone.

It should also match:

• 1/2 in bore
• 40 mm OD
• 19 mm inner-ring width
• 28.6 mm overall width
• Eccentric collar geometry
• Inner-ring extension
• Seal type
• Housing compatibility
• Internal clearance
• Speed capability

(Always verify the complete BCA NPS008RPC specification before selecting another brand or insert-bearing family.)
