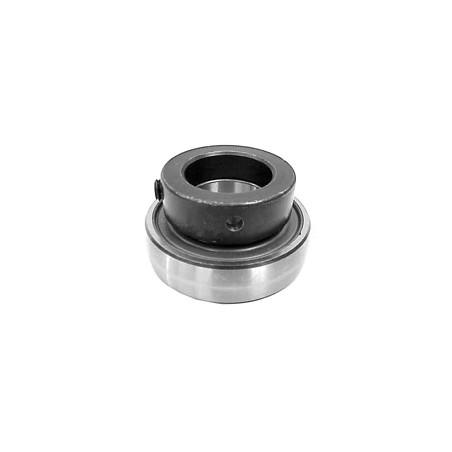

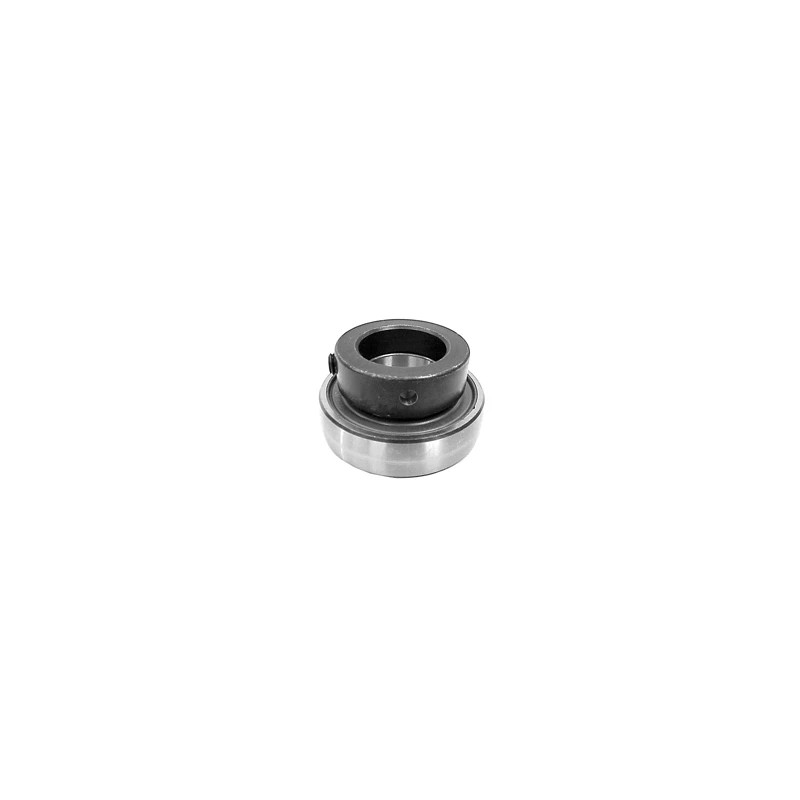

The Link-Belt W216UL is a narrow-style insert ball bearing designed for mounted-bearing housings in agricultural, conveyor, fan, roller, and general industrial applications.

Its spherical outer ring allows the bearing insert to seat inside a compatible spherical housing and accommodate limited initial misalignment between the shaft and housing.

The shaft is secured using an:

Eccentric Cam Locking Collar

This locking method works by rotating the eccentric collar relative to the eccentric extension on the inner ring until the two surfaces wedge together, then securing the collar in position.

This design is particularly suitable for applications with predominantly one-direction shaft rotation.

⚙️ Applications

• Agricultural machinery
• Conveyor systems
• Pillow-block bearing units
• Flange bearing units
• Fans and blowers
• Roller assemblies
• Material-handling machinery
• Packaging equipment
• Light industrial drives
• Legacy Link-Belt mounted-bearing systems

🎯 Benefits

✔ 1 inch shaft bore

✔ 52 mm spherical outside diameter

✔ Compact 205-size insert-bearing body

✔ Eccentric locking collar

✔ Double contact seals

✔ Non-relubricatable / factory-lubricated design

✔ Suitable for self-aligning housing arrangements

✔ Easy installation and replacement

✔ Several cross-reference candidates available

🧠 Technical Insight

• Link-Belt W216UL
• 1 in Bore
• 25.40 mm Bore
• 52 mm Outside Diameter
• Eccentric Cam Lock
• Spherical Outer Ring
• Double Contact Seals
• Non-Relubricatable

✅ Key Features

• Link-Belt Industrial Bearing
• Model W216UL
• Insert Ball Bearing
• Narrow Series
• 1 in Shaft Bore
• 52 mm Spherical OD
• Eccentric Locking Collar
• Double-Sealed Configuration

📊 Specifications

Brand: Link-Belt / Rexnord

Model / Bearing Number: W216UL

Product Type: Insert Ball Bearing

Series / Body Family: 205-size insert-bearing body

Bore Diameter (d): 1.000 in / 25.40 mm

Outside Diameter (D): 2.0472 in / 52.00 mm

Outer Ring Width: 15 mm

Overall Width / Length Through Bore: 1-7/32 in / approx. 30.95 mm

Rolling Element: Ball

Outer Ring: Spherical

Inner Ring: Extended / eccentric-lock configuration

Locking Method: Eccentric Cam Locking Collar

Seal Type: Double Contact Seals

Lubrication: Factory-lubricated

Relubricatable: No

Approx. Weight: 0.43 lb / 0.20 kg

Load Capability: Primarily radial load with moderate axial-load capability depending on the mounted-bearing arrangement

Shaft Fit: Nominal 1 in shaft

Housing Fit: Must match a compatible spherical-seat insert-bearing housing

Internal Clearance: Verify original Link-Belt specification

Cage: Verify actual Link-Belt production specification

Speed Rating: Verify manufacturer data for exact W216UL execution

Temperature Range: Depends on contact seal material, grease, load, fit, and operating environment

Installation Consideration: Seat the insert correctly in the housing, align the shaft, rotate the eccentric collar in the shaft-rotation direction to lock, secure the collar, and verify alignment before operation

🔁 Equivalent

Suitable cross-reference candidates include:

• Link-Belt W216UL
• SKF YET 205-100
• SKF YET 205-100W
• NTN AEL205-100
• NTN AEL205-100N
• ASAHI SA205-16
• SA205-16
• Timken / Fafnir RA100RRB
• 1 in Bore Eccentric Lock Insert Bearing
• 52 mm OD Insert Bearing

Cross-Reference Comparison

These are strong cross-reference candidates because they belong to the same general 1 inch bore / 52 mm spherical OD eccentric-lock insert-bearing class.

However, a replacement should still be checked for:

• Overall width
• Inner-ring width
• Spherical OD radius
• Eccentric collar geometry
• Seal construction
• Lubrication arrangement
• Internal clearance
• Housing compatibility
• Maximum speed
• Shaft rotation direction requirements

W215UL vs W216UL

The outer body size remains essentially the same, but the shaft bore increases by 1/16 inch.

Therefore, W215UL and W216UL should not be treated as interchangeable unless the shaft diameter is also changed.

(Always verify the complete W216UL dimensions and housing compatibility before selecting another manufacturer's insert bearing.)
