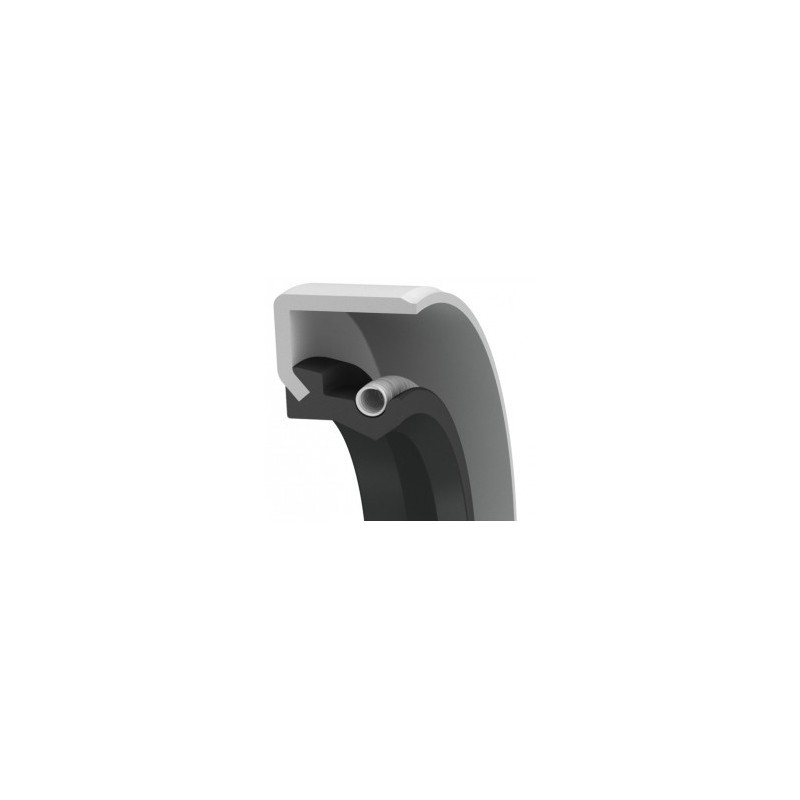

The AKRON Oil Seal 75x105x12 LGS FKM is designed for industrial rotary shaft applications requiring dependable lubricant retention around a 75 mm shaft.

Installed between the rotating shaft and stationary housing, the sealing element creates controlled radial contact with the shaft surface. This helps reduce leakage of compatible oil or grease while protecting bearings, gearboxes, pumps, transmissions, and other internal rotating components from contamination.

The product is identified by the AKRON manufacturer designation LGS. Because industrial seal-profile codes may differ between manufacturers and production series, the exact sealing-lip geometry, number of lips, outside-diameter construction, internal reinforcement, spring arrangement, dust-exclusion feature, and installation direction should be compared with the original seal or technical drawing before replacement.

The sealing element is manufactured from FKM fluoroelastomer, which is generally selected for applications requiring:

• High-temperature resistance
• Excellent resistance to mineral and synthetic oils
• Good resistance to fuels
• Strong resistance to many industrial chemicals
• Good resistance to ozone and weathering
• Long-term sealing stability under demanding operating conditions

FKM is commonly chosen where NBR may not provide sufficient resistance to temperature, aggressive lubricants, fuels, or chemical exposure. However, compatibility should still be verified for the actual fluid, temperature, speed, pressure, and operating environment.

The metric dimensions are:

Shaft diameter: 75 mm

Housing diameter: 105 mm

Seal width: 12 mm

The 75 × 105 × 12 mm dimensions make this seal suitable for industrial bearing housings, gearboxes, pumps, process machinery, transmissions, and OEM rotating equipment. Accurate dimensional measurement and LGS-profile verification are essential before installation.

⚙️ Applications

• Industrial gearboxes
• Bearing housings
• Industrial pumps
• Mechanical transmissions
• Process machinery
• Chemical-processing equipment
• Agricultural machinery
• Construction equipment
• Conveyor drive systems
• OEM rotating machinery

🎯 Benefits

✔ Helps retain compatible oil or grease

✔ High-temperature FKM sealing material

✔ Strong resistance to oils and fuels

✔ Good resistance to many industrial chemicals

✔ Suitable for 75 mm shaft assemblies

✔ Good resistance to ozone and weathering

✔ Suitable for maintenance and overhaul work

✔ Supports demanding industrial applications

✔ OEM replacement ready when dimensions and profile match

🧠 Technical Insight

• AKRON LGS Seal Reference
• Metric Rotary Shaft Seal
• FKM Fluoroelastomer Material
• High-Temperature Sealing Capability
• Low-Pressure Lubricant Retention
• Chemical-Resistant Industrial Application
• 75 mm Shaft Diameter
• LGS Cross-Section Verification Required

✅ Key Features

• AKRON Industrial Quality
• LGS Profile Reference
• High-Performance FKM Material
• Reinforced Rotary Shaft Construction
• Metric 75x105x12 mm Dimensions
• Suitable for Compatible Oil and Grease
• Heavy-Duty Industrial Replacement Seal
• OEM Cross-Reference Ready

📊 Specifications

Brand: AKRON

Model: LGS

Size: 75 × 105 × 12 mm

Type: High-Temperature Industrial Rotary Shaft Oil Seal

Material: FKM Fluoroelastomer

Profile: LGS

Construction: Manufacturer-Specific Reinforced Rotary Shaft-Seal Construction

Lip Design: LGS profile; verify the exact geometry against the original seal

Dust Lip: Verify from the actual LGS cross-section

Spring Type: Verify from the actual seal construction

Shaft Diameter (ID): 75 mm

Housing Diameter (OD): 105 mm

Width: 12 mm

Pressure Capability: Low-pressure rotary shaft-sealing service unless otherwise specified

Lubrication: Compatible mineral oil, synthetic oil, grease, fuel, or process fluid; verify compatibility

Temperature Range: Typically approximately -20°C to +200°C for many FKM compounds; verify the actual compound, fluid, speed, and operating conditions

Speed Consideration: Permissible speed depends on shaft diameter, surface finish, lubrication, temperature, alignment, and material compound

Application Class: High-Temperature and Chemical-Resistant Industrial Rotating Equipment

Standard: Metric Industrial Seal

🔁 Equivalent

Suitable replacement for compatible:

• AKRON LGS FKM Rotary Shaft Seal
• AKRON 75x105x12 Oil Seal
• 75x105x12 FKM Oil Seal
• 75 mm Shaft Oil Seal
• Metric FKM Rotary Shaft Seal
• High-Temperature Bearing Housing Seal
• Industrial Gearbox FKM Seal
• Pump Shaft FKM Seal
• OEM LGS Shaft Seal
• Chemical-Resistant Industrial Rotary Seal

The same dimensions alone do not guarantee interchangeability. The replacement must match the original LGS cross-section, sealing-lip geometry, lip orientation, outside construction, reinforcement arrangement, spring configuration, installation direction, and FKM compound.

(Always verify dimensions, LGS-profile geometry, lip direction, shaft finish, housing condition, installation depth, fluid compatibility, rotational speed, temperature, pressure, and operating conditions before ordering.)
