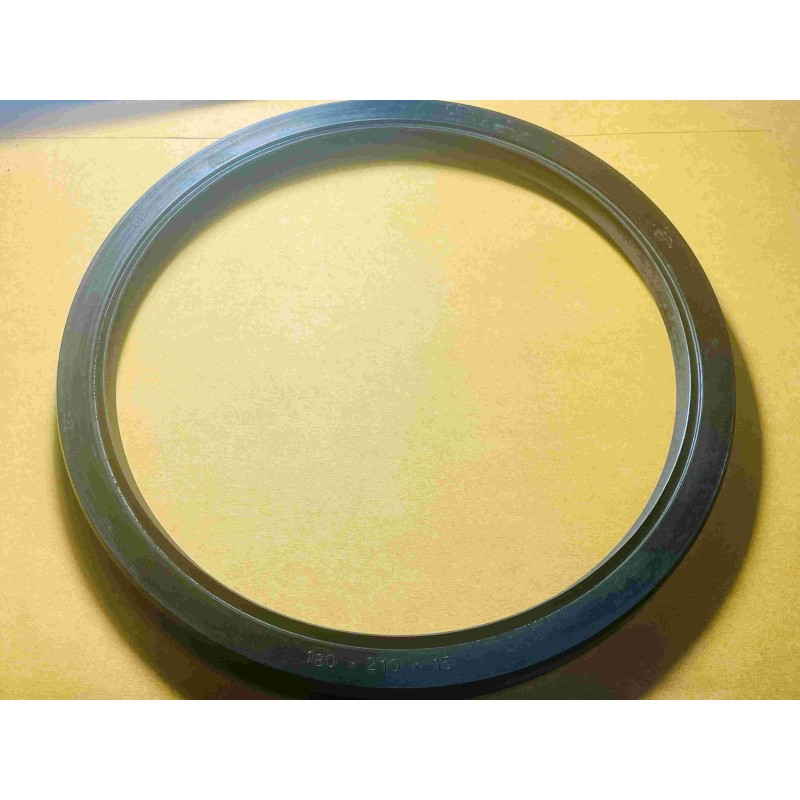

The FP Oil Seal 180x210x15 GP NBR is engineered for industrial applications where equipment operates continuously under harsh conditions and requires reliable lubricant retention and contamination protection.

The GP profile is an enhanced version of the standard G-type oil seal. It incorporates a primary sealing lip energized by a garter spring and an additional dust lip that protects against dirt, dust, moisture, and external contaminants. This dual-lip configuration significantly improves bearing protection and extends equipment service life.

The seal utilizes a rubber-covered metal case construction that improves housing sealing performance while maintaining excellent structural stability. The garter spring ensures consistent radial contact pressure between the sealing lip and shaft surface, helping to minimize lubricant leakage and maintain long-term sealing performance.

Manufactured from NBR (Nitrile Butadiene Rubber), the sealing element provides excellent resistance to lubricating oils, hydraulic fluids, grease, and petroleum-based lubricants. NBR remains the most commonly used sealing material in industrial oil seals due to its excellent oil resistance, wear resistance, flexibility, and cost-effectiveness. Typical operating temperatures range approximately from -30°C to +120°C depending on operating conditions.

With dimensions of 180 x 210 x 15 mm, this seal is commonly installed in industrial gearboxes, crushers, conveyors, mining machinery, cement equipment, steel mill equipment, pumps, and large rotating industrial systems.

⚙️ Applications

• Industrial gearbox
• Electric motors
• Hydraulic pumps
• Mining equipment
• Crushers
• Conveyor systems
• Cement plant machinery
• Steel mill equipment
• Material handling equipment
• Heavy-duty rotating machinery

🎯 Benefits

✔ Excellent oil retention

✔ Double lip contamination protection

✔ Protect against dust and moisture

✔ Extend bearing and shaft life

✔ Reduce lubricant leakage

✔ Lower maintenance costs

✔ Improve equipment reliability

✔ Suitable for continuous heavy-duty operation

🧠 Technical Insight

• GP Profile = Primary sealing lip + Dust lip
• Rubber-covered metal case improves housing sealing
• Garter spring maintains consistent sealing pressure
• NBR provides excellent resistance to oil and grease
• Suitable for oil and grease lubrication systems
• Designed for large-diameter industrial shaft applications
• Recommended for dusty industrial environments

✅ Key Features

• GP Double Lip Design
• Spring Loaded Sealing Lip
• Additional Dust Lip
• Premium NBR Material
• Heavy-Duty Industrial Construction
• OEM Replacement Ready

📊 Specifications

Brand: FP

Model: GP

Size: 180 x 210 x 15 mm

Type: Double Lip Rotary Shaft Oil Seal

Material: NBR (Nitrile Rubber)

Construction: Rubber Covered Metal Case

Spring Type: Garter Spring

Shaft Diameter (ID): 180 mm

Housing Diameter (OD): 210 mm

Width: 15 mm

Pressure Capability: Up to 0.5 Bar

Application Class: Heavy-Duty Industrial Service

🔁 Equivalent

Suitable replacement for:

SKF HMSA10 Series

NOK SC / TC Type

CR Oil Seal

CFW BA Type

KACO Oil Seal

TTO Oil Seal

DICHTA AS Type

(Always verify dimensions and seal profile before ordering.)
