    OIL SEAL SCHNIEDER 2.484X3.312X0.500 M/F FABRIC Price | Heavy Duty Fabric Reinforced Rotary Shaft Seal
    OIL SEAL SCHNIEDER 2.484X3.312X0.500 M/F FABRIC Price | Heavy Duty Fabric Reinforced Rotary Shaft Seal
    OIL SEAL SCHNIEDER 2.484X3.312X0.500 M/F FABRIC Price | Heavy Duty Fabric Reinforced Rotary Shaft Seal

    OIL SEAL SCHNIEDER 2.484X3.312X0.500 M/F FABRIC Price | Heavy Duty Fabric Reinforced Rotary Shaft Seal

    Review (0)

    SCHNIEDER oil seal 2.484x3.312x0.500 M/F Fabric is a heavy-duty fabric reinforced rotary shaft seal designed for industrial gearboxes, conveyors, pumps, rolling mills, mining equipment, and imported machinery. The fabric-reinforced construction provides excellent structural stability, superior contamination protection, and extended service life in harsh industrial environments. Fabric-reinforced seals are widely used where conventional rubber seals may not provide sufficient durability.

    • Security policySecurity policy
    • Delivery policyDelivery policy
    • Return policyReturn policy

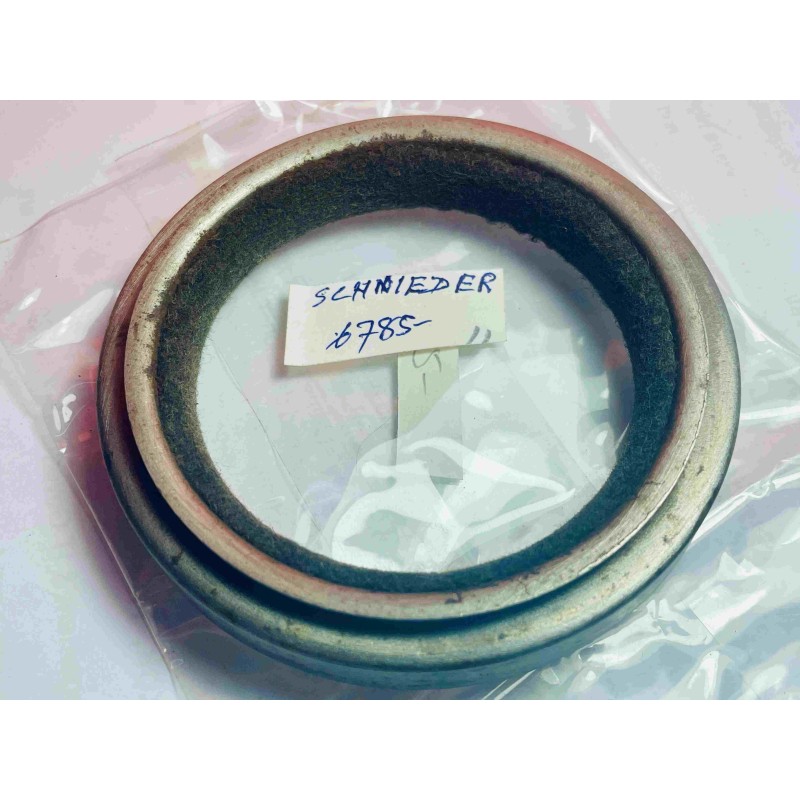

    The SCHNIEDER 2.484x3.312x0.500 M/F Fabric Oil Seal is a heavy-duty rotary shaft seal engineered for demanding industrial applications requiring high durability and reliable sealing performance.

    The M/F Fabric design incorporates reinforced fabric material that improves dimensional stability, vibration resistance, and installation durability. Unlike conventional metal-cased oil seals, fabric reinforced seals are commonly used in severe-duty applications where heavy loads, shaft movement, worn housings, and contaminated environments are present.

    This type of seal is widely applied in industrial gearboxes, conveyors, crushers, mining machinery, rolling mills, agricultural equipment, and imported inch-size machinery. The reinforced structure helps retain lubricant while preventing dust, dirt, water, and other contaminants from entering the system.

    ⚙️ Applications

    • Industrial gearbox
    • Conveyor drive system
    • Rolling mill equipment
    • Mining machinery
    • Crusher equipment
    • Agricultural machinery
    • Industrial pumps
    • Heavy-duty rotating equipment

    🎯 Benefits

    ✔ Reduce oil leakage

    ✔ Prevent dust and contamination ingress

    ✔ Extend bearing and shaft life

    ✔ Withstand vibration and heavy-duty operation

    ✔ Reduce maintenance costs

    ✔ Improve equipment reliability

    🧠 Technical Insight

    • Fabric reinforced construction improves durability
    • Suitable for harsh industrial environments
    • Excellent dimensional stability
    • Suitable for oil and grease lubrication
    • Often used in large industrial and imported equipment applications

    📊 Specifications

    Brand: SCHNIEDDER

    Model: M/F Fabric

    Size: 2.484 x 3.312 x 0.500 inch

    Type: Fabric Reinforced Rotary Shaft Oil Seal

    Material: Fabric Reinforced Composite

    Shaft Diameter: 2.484 inch

    Housing Diameter: 3.312 inch

    Width: 0.500 inch

    🔁 Equivalent

    Suitable replacement for:

    SKF / CR / National / Garlock / Chicago Rawhide / Clipper Style Fabric Seal

    (Verify dimensions and seal profile before ordering.)

    📦 Availability

    ✅ In Stock

    🚚 Fast Delivery Available

    📦 MOQ: 1 Piece

    📲 Contact via LINE ID: dusitrea

    🏭 Suitable for industrial maintenance and OEM replacement

    6785 | SCHNIEDDER-2.484X3.312X0.500-MF-FABRIC

    Data sheet

    Indent (I.D.) - inch
    2.484
    Outdent (O.D.) - inch
    3.312
    Thinkness - inch
    0.500
    Material
    FABRIC
    Cover Material
    CARBON STEEL
    Standard Type
    M/F [CARBON STEEL + FABRIC LIP]
    Brand
    SCHNEIDER
    Item Condition
    New

    Specific References

    New
