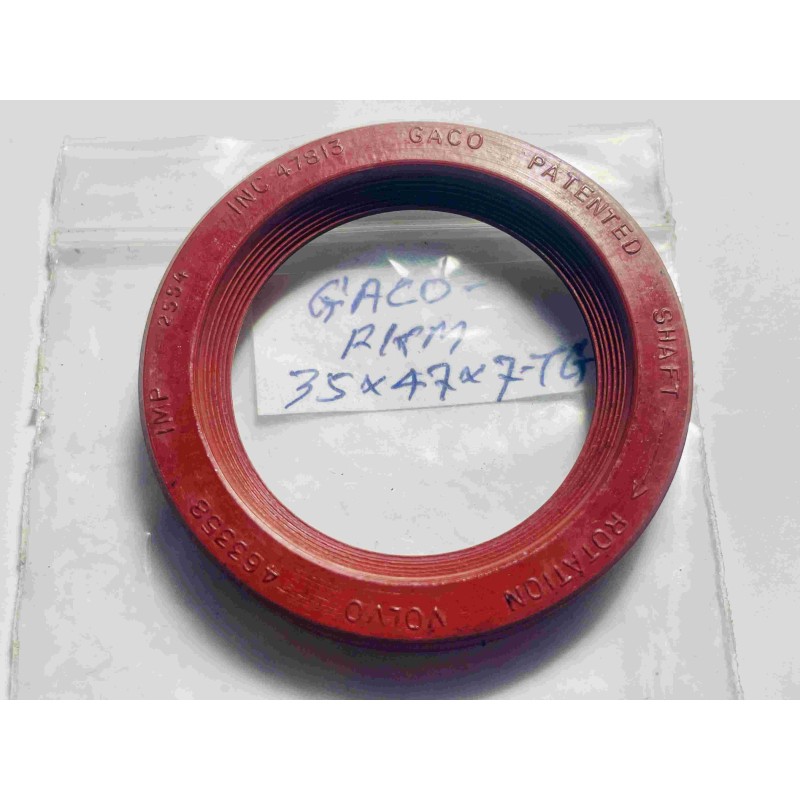

The GACO 35x47x7 TG FKM Oil Seal is engineered for demanding industrial applications where standard NBR oil seals may not provide sufficient temperature or chemical resistance.

The TG profile is a double-lip rotary shaft seal design incorporating a primary spring-loaded sealing lip and an auxiliary dust lip. This construction provides excellent lubricant retention while preventing dust, moisture, dirt, and external contaminants from entering the sealing area. TG seals are widely used in industrial machinery, pumps, compressors, hydraulic systems, and rotating equipment requiring enhanced sealing performance.

Manufactured from FKM (Fluoroelastomer / Viton®) material, the seal offers significantly higher temperature resistance than conventional NBR seals. FKM provides exceptional resistance to oils, fuels, hydraulic fluids, chemicals, solvents, ozone, and aging, making it the preferred sealing material for harsh industrial environments.

The compact dimensions of 35 x 47 x 7 mm make this seal suitable for electric motors, pumps, industrial gearboxes, compressors, hydraulic equipment, process machinery, and OEM industrial applications requiring high-performance sealing capability.

⚙️ Applications

• Industrial pumps
• Electric motors
• Industrial gearboxes
• Compressors
• Hydraulic equipment
• Process machinery
• Chemical equipment
• Food processing machinery
• Industrial fans
• OEM equipment

🎯 Benefits

✔ Excellent oil retention

✔ High temperature resistance

✔ Superior chemical resistance

✔ Double lip contamination protection

✔ Reduce shaft wear

✔ Extend bearing life

✔ Lower maintenance costs

✔ Longer service life than NBR seals

✔ Ideal for harsh operating environments

🧠 Technical Insight

• TG Profile = Primary Lip + Dust Lip
• Double lip sealing technology
• FKM material withstands elevated temperatures
• Excellent resistance to oils and fuels
• Suitable for aggressive industrial environments
• Better aging and ozone resistance than NBR
• Commonly used in high-performance sealing applications

✅ Key Features

• GACO Premium Quality
• TG Double Lip Design
• FKM (Viton®) Material
• High Temperature Capability
• Chemical Resistant Construction
• OEM Replacement Ready

📊 Specifications

Brand: GACO

Model: TG

Size: 35 x 47 x 7 mm

Type: Double Lip Rotary Shaft Oil Seal

Material: FKM (Viton® Fluoroelastomer)

Construction: Rubber Covered Metal Case

Spring Type: Garter Spring

Shaft Diameter (ID): 35 mm

Housing Diameter (OD): 47 mm

Width: 7 mm

Application Class: High Temperature Industrial Service

🔁 Equivalent

Suitable replacement for:

SKF HMSA10 FKM Series

NOK TG / TC FKM Type

CR Chicago Rawhide Seal

CFW BAFSL FKM Seal

KACO FKM Oil Seal

DICHTOMATIK FKM Seal

TRELLEBORG TG Seal

(Always verify dimensions, material, and seal profile before ordering.)
