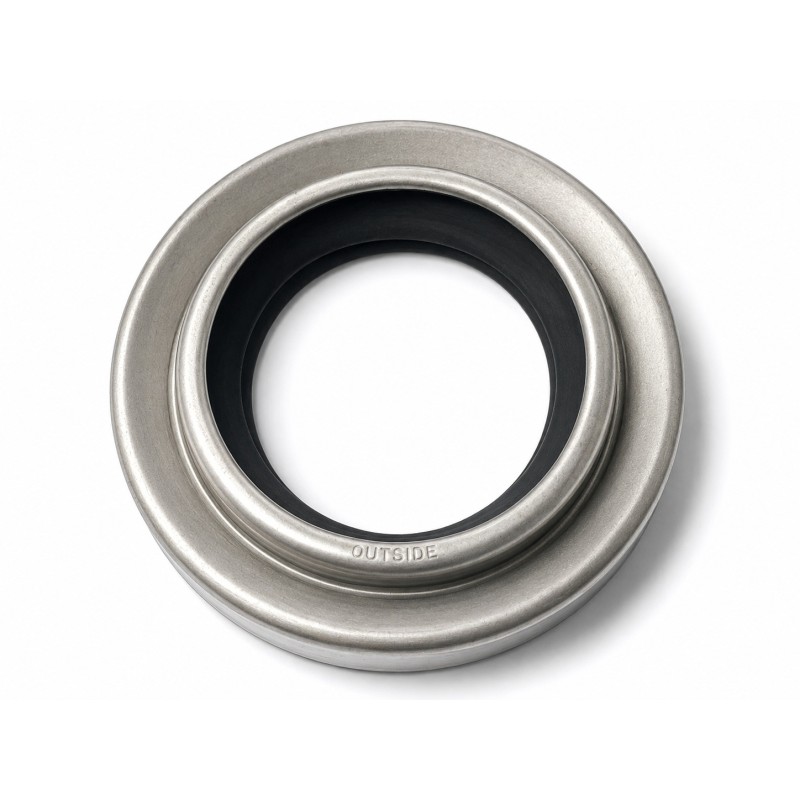

The CR 1.688x2.688x0.500 SYN NBR Oil Seal (Part No. CR-16559) is engineered for rotating equipment requiring dependable sealing performance under normal industrial operating conditions. It is suitable for OEM machinery as well as maintenance and overhaul applications across manufacturing, mining, agriculture, construction, and general industrial sectors.

Manufactured by Chicago Rawhide (CR), one of the world's most recognized sealing technology brands, this oil seal utilizes precision sealing geometry together with premium Synthetic NBR elastomer to provide long-lasting sealing performance.

The seal incorporates a spring-loaded primary sealing lip that continuously maintains radial contact pressure against the rotating shaft through an integrated garter spring. This design minimizes lubricant leakage while protecting bearings, gears, shafts, and internal rotating components.

The reinforced metal case provides excellent dimensional stability and secure housing retention. Under normal operating conditions, seals of this construction are generally suitable for applications with internal pressure up to approximately 0.5 Bar, depending on shaft speed, lubrication, and installation quality.

Manufactured from premium Synthetic NBR (Nitrile Butadiene Rubber), the seal provides excellent resistance to:

• Mineral oils
• Hydraulic oils
• Gear oils
• Lubricating grease
• Petroleum-based lubricants
• Light industrial chemicals

Synthetic NBR offers excellent abrasion resistance, flexibility, aging resistance, and cost-effective sealing performance. Typical operating temperatures range from -40°C to +100°C, depending on lubricant compatibility and operating conditions.

With dimensions of 1.688 × 2.688 × 0.500 inch, this oil seal is commonly installed in industrial pumps, speed reducers, gearboxes, compressors, agricultural machinery, conveyor systems, construction equipment, and OEM rotating machinery utilizing inch-size shaft systems.

⚙️ Applications

• Industrial gearboxes
• Industrial pumps
• Electric motors
• Speed reducers
• Air compressors
• Agricultural machinery
• Conveyor systems
• Power transmission equipment
• Construction machinery
• OEM machinery

🎯 Benefits

✔ Premium Chicago Rawhide quality

✔ Excellent oil retention

✔ Outstanding wear resistance

✔ Reliable shaft sealing

✔ Protects bearings and shafts

✔ Long service life

✔ OEM quality replacement

✔ Reduces maintenance costs

✔ Suitable for continuous industrial operation

🧠 Technical Insight

• CR Precision Seal Design
• Reinforced Metal Case
• Spring Loaded Main Lip
• Premium Synthetic NBR Material
• Excellent Oil Resistance
• Oil & Grease Compatible
• Reliable Rotary Shaft Sealing
• Heavy Industrial Service

✅ Key Features

• Chicago Rawhide (CR) Industrial Quality
• Premium Synthetic NBR
• Reinforced Steel Case
• Spring Loaded Sealing Lip
• Excellent Wear Resistance
• Precision Manufacturing
• OEM Replacement Ready
• Long Service Life

📊 Specifications

Brand: CR (Chicago Rawhide)

Part Number: CR-16559

Size: 1.688 × 2.685 × 0.500 inch

Type: Rotary Shaft Oil Seal

Material: Synthetic NBR (Nitrile Butadiene Rubber)

Construction: Metal Case

Lip Design: Spring Loaded Main Lip

Spring Type: Garter Spring

Shaft Diameter (ID): 1.688 inch

Housing Diameter (OD): 2.685 inch

Width: 0.500 inch

Pressure Capability: Up to 0.5 Bar

Lubrication: Oil & Grease

Temperature Range: -40°C to +100°C

Application Class: Heavy Industrial Service

Standard: Inch Size Oil Seal

🔁 Equivalent

Suitable replacement for:

• SKF Rotary Shaft Oil Seal
• National Oil Seal
• Freudenberg Oil Seal
• Simrit Oil Seal
• NOK Oil Seal
• CFW Rotary Shaft Seal
• KACO Oil Seal
• DICHTOMATIK Oil Seal
• Garlock Oil Seal
• OEM Rotary Shaft Oil Seal

(Always verify dimensions, part number, and seal profile before ordering.)
