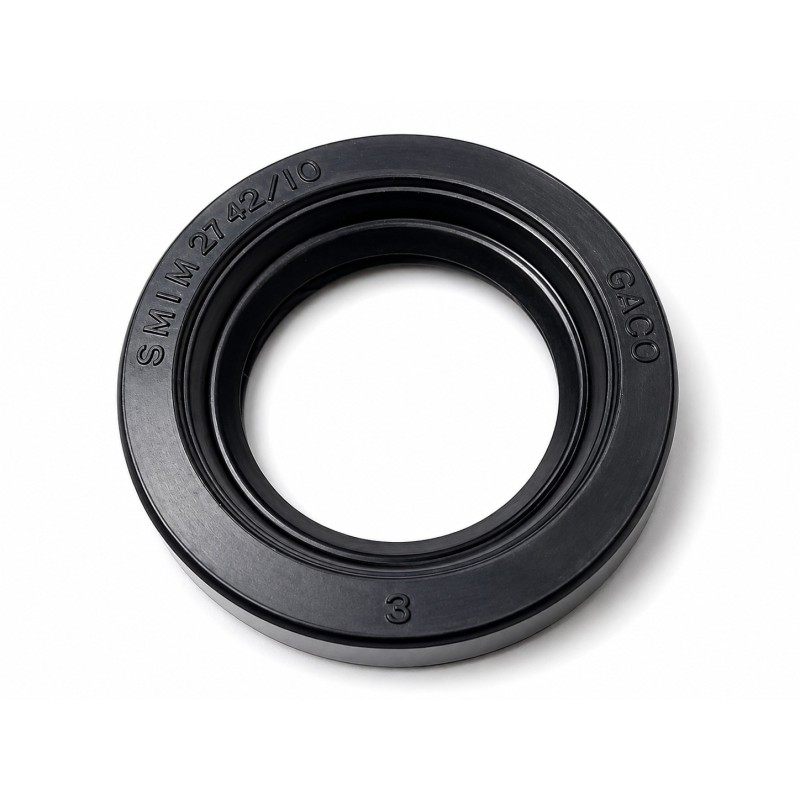

The GACO 27x42x10 TG NBR Oil Seal is engineered for rotating equipment requiring dependable lubricant retention and enhanced protection against dust, dirt, moisture, and other contaminants. It is suitable for OEM equipment as well as maintenance and replacement applications across a wide range of industrial sectors.

The TG Profile features a rubber-covered metal case, spring-loaded primary sealing lip, and an auxiliary dust lip. The rubber-coated outer diameter improves static sealing between the seal and housing while compensating for minor housing imperfections. The primary sealing lip retains lubricants inside the equipment, while the dust lip prevents contaminants from entering the sealing area, helping extend the service life of bearings and rotating components.

The integrated garter spring maintains constant radial pressure on the shaft surface, ensuring stable sealing performance even under continuous operation. This design minimizes lubricant leakage, reduces shaft wear, and improves equipment reliability.

Manufactured from premium NBR (Nitrile Butadiene Rubber), the seal offers excellent resistance to:

• Mineral oils
• Hydraulic oils
• Gear oils
• Lubricating grease
• Petroleum-based lubricants

NBR provides outstanding oil resistance, abrasion resistance, flexibility, and durability, making it one of the most widely used elastomers for industrial rotary shaft seals. Typical operating capability is up to 0.5 Bar, with operating temperatures ranging from -40°C to +100°C, depending on shaft speed, lubrication, and operating conditions.

With dimensions of 27 × 42 × 10 mm, this seal is commonly used in industrial pumps, gearboxes, electric motors, compressors, agricultural equipment, conveyor systems, hydraulic equipment, and OEM rotating machinery.

⚙️ Applications

• Industrial gearboxes
• Industrial pumps
• Electric motors
• Hydraulic equipment
• Air compressors
• Agricultural machinery
• Conveyor systems
• Power transmission equipment
• Construction machinery
• OEM machinery

🎯 Benefits

✔ Excellent oil retention

✔ Double lip contamination protection

✔ Protects bearings and shafts

✔ Reduces lubricant leakage

✔ Excellent wear resistance

✔ Long service life

✔ Suitable for dusty environments

✔ OEM quality replacement

✔ Reliable industrial performance

🧠 Technical Insight

• TG Double Lip Design
• Rubber Covered Metal Case
• Spring Loaded Main Lip
• Auxiliary Dust Lip
• Excellent Oil Resistance
• Oil & Grease Compatible
• Reliable Contamination Protection
• Industrial Rotary Equipment

✅ Key Features

• GACO Industrial Quality
• TG Profile Design
• Double Lip Construction
• Premium NBR Material
• Rubber Covered OD
• Dust Exclusion Capability
• OEM Replacement Ready
• Long Service Life

📊 Specifications

Brand: GACO

Model: TG

Size: 27 × 42 × 10 mm

Type: Double Lip Rotary Shaft Oil Seal

Material: NBR (Nitrile Rubber)

Profile: TG

Construction: Rubber Covered Metal Case

Lip Design: Main Lip + Dust Lip

Spring Type: Garter Spring

Shaft Diameter (ID): 27 mm

Housing Diameter (OD): 42 mm

Width: 10 mm

Pressure Capability: Up to 0.5 Bar

Lubrication: Oil & Grease

Temperature Range: -40°C to +100°C

Application Class: Industrial Service

Standard: Metric Oil Seal

🔁 Equivalent

Suitable replacement for:

• SKF TG Oil Seal
• NOK TC Oil Seal
• CR Chicago Rawhide Oil Seal
• National Oil Seal
• Freudenberg Oil Seal
• CFW Rotary Shaft Seal
• KACO Oil Seal
• DICHTOMATIK Oil Seal
• Simrit Oil Seal
• OEM Double Lip Oil Seal

(Always verify dimensions and seal profile before ordering.)
