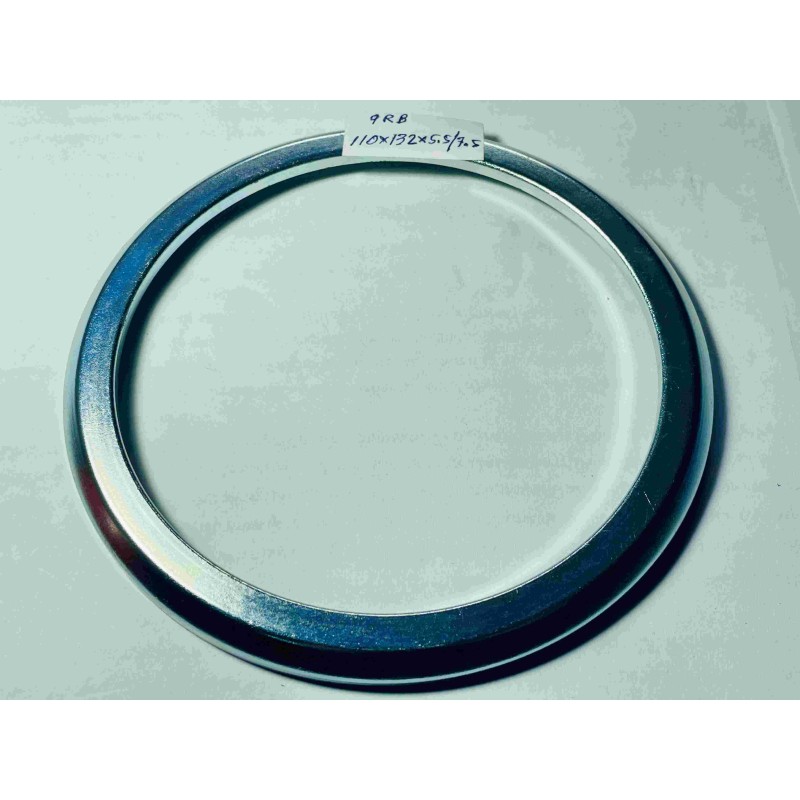

The Gamma Seal 9RB 110x132x5.5/7.5 is designed primarily as an external contamination exclusion seal rather than a conventional oil-retaining rotary shaft seal.

The seal consists of a metal outer ring combined with a flexible elastomer sealing element that creates axial contact against a stationary counter face. This design forms an effective barrier against dust, moisture, mud, sand, and airborne contaminants that may damage bearings and internal sealing systems.

Gamma Seals are commonly installed in front of primary oil seals to significantly increase bearing protection and overall sealing system reliability. They are widely used in harsh operating environments where contamination is a major cause of equipment failure.

The compact design allows easy installation while providing reliable protection under shaft misalignment, vibration, and continuous-duty operation.

With dimensions of 110 x 132 x 5.5/7.5 mm, this seal is suitable for industrial equipment, agricultural machinery, mining equipment, conveyors, electric motors, gearboxes, and OEM rotating machinery.

⚙️ Applications

• Bearing housings
• Agricultural machinery
• Industrial gearboxes
• Conveyor systems
• Mining equipment
• Construction machinery
• Electric motors
• Pumps
• Power transmission systems
• OEM machinery

🎯 Benefits

✔ Excellent dust exclusion

✔ Protects bearings and oil seals

✔ Prevents water ingress

✔ Reduces contamination-related failures

✔ Extends equipment service life

✔ Low maintenance solution

✔ Suitable for harsh environments

✔ Easy installation

✔ Long operating life

🧠 Technical Insight

• Axial Face Seal Design
• Metal Reinforced Construction
• Elastomer Sealing Element
• Non-pressure sealing application
• Effective contamination exclusion
• Supports bearing protection
• Suitable for dusty environments
• Often installed with primary oil seals

✅ Key Features

• Gamma Seal Design
• Axial Contact Sealing
• Metal Reinforced Structure
• Contamination Exclusion Technology
• Water and Dust Protection
• OEM Replacement Ready
• Industrial Grade Construction
• Long Service Life

📊 Specifications

Brand: Gamma Seal

Model: 9RB

Size: 110 x 132 x 5.5 / 7.5 mm

Type: Axial Face Seal

Construction: Metal Reinforced Elastomer Seal

Shaft Diameter (ID): 110 mm

Outer Diameter (OD): 132 mm

Width: 5.5 / 7.5 mm

Application: Bearing Protection

Function: Dust & Water Exclusion

Installation Position: External Shaft Protection

Standard: Metric Size

🔁 Equivalent

Suitable replacement for:

• SKF Gamma Seal
• Simrit Gamma Ring
• Freudenberg Gamma Seal
• Trelleborg Axial Seal
• Bearing Protector Ring
• Dust Excluder Ring
• Axial Face Seal
• OEM Gamma Seal

(Always verify dimensions before ordering.)
