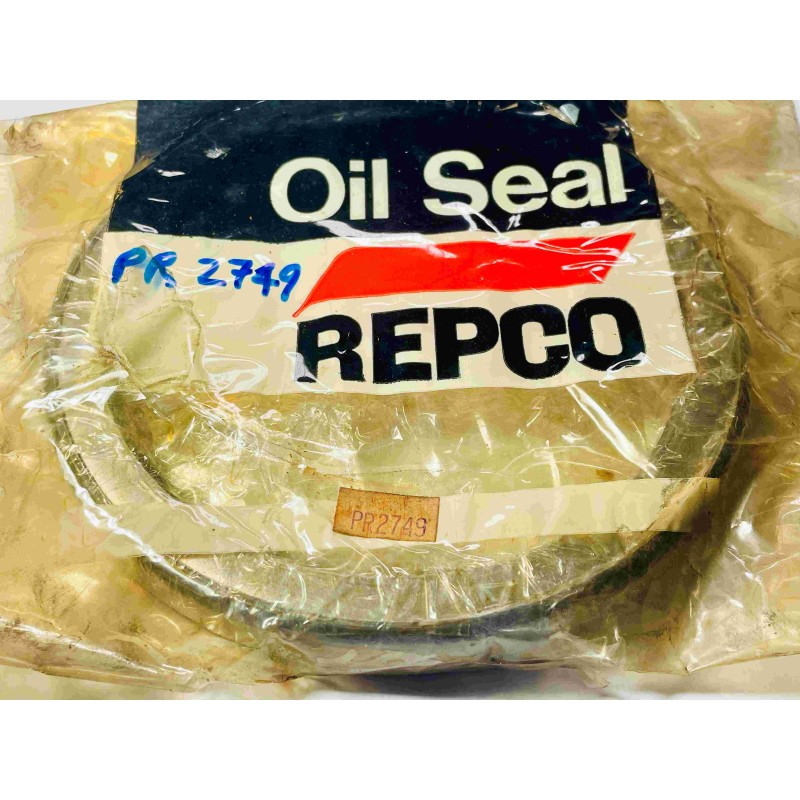

The REPCO 4.688x5.750x0.5625 TCN Silicone Oil Seal is engineered for industrial rotating equipment operating under elevated temperatures and challenging environmental conditions.

The TCN Profile incorporates a reinforced metal case, spring-loaded primary sealing lip, secondary sealing lip, and an additional dust exclusion lip. This triple-lip configuration provides superior oil retention while preventing dust, moisture, dirt, and airborne contaminants from entering the system.

Unlike standard NBR oil seals, Silicone elastomer offers significantly improved temperature resistance and maintains flexibility across a wider temperature range. This makes Silicone seals particularly suitable for equipment exposed to continuous heat, thermal cycling, outdoor environments, and applications requiring enhanced resistance to aging and ozone exposure.

The garter spring maintains constant radial sealing force against the shaft surface, ensuring reliable sealing performance even during prolonged operation and varying operating conditions.

With dimensions of 4.688 x 5.750 x 0.5625 inch, this seal is commonly used in industrial gearboxes, pumps, electric motors, fans, blowers, conveyors, agricultural equipment, and OEM machinery requiring high-temperature sealing capability.

⚙️ Applications

• Industrial gearboxes
• Industrial pumps
• Electric motors
• Industrial fans
• Blowers
• Conveyor systems
• Agricultural machinery
• Power transmission equipment
• High-temperature machinery
• OEM equipment

🎯 Benefits

✔ High temperature resistance

✔ Excellent weather resistance

✔ Superior ozone resistance

✔ Triple lip contamination protection

✔ Excellent lubricant retention

✔ Long service life

✔ Reduced maintenance costs

✔ Reliable continuous operation

✔ Improved equipment protection

🧠 Technical Insight

• TCN Triple Lip Design
• Metal Case Construction
• Spring Loaded Main Lip
• Auxiliary Sealing Lip
• Dust Exclusion Lip
• Silicone Elastomer Material
• Excellent High Temperature Performance
• Enhanced Environmental Resistance

✅ Key Features

• REPCO Industrial Quality
• TCN Triple Lip Profile
• Silicone Rubber Construction
• Metal Reinforced Case
• High Temperature Capability
• Excellent Ozone Resistance
• OEM Replacement Ready
• Long Service Life

📊 Specifications

Brand: REPCO

Model: TCN

Size: 4.688 x 5.750 x 0.5625 inch

Type: Triple Lip Rotary Shaft Oil Seal

Material: Silicone Rubber (VMQ)

Profile: TCN

Construction: Metal Case

Lip Design: Triple Lip

Spring Type: Garter Spring

Shaft Diameter (ID): 4.688 inch

Housing Diameter (OD): 5.750 inch

Width: 0.5625 inch

Lubrication: Oil & Grease

Temperature Range: -60°C to +200°C

Application Class: High Temperature Industrial Service

Standard: Inch Size Oil Seal

🔁 Equivalent

Suitable replacement for:

• SKF Silicone Oil Seal
• CR Chicago Rawhide Oil Seal
• National Oil Seal
• NOK Silicone Oil Seal
• CFW Rotary Shaft Seal
• KACO Oil Seal
• DICHTOMATIK Oil Seal
• OEM High Temperature Oil Seal

(Always verify dimensions and seal profile before ordering.)
