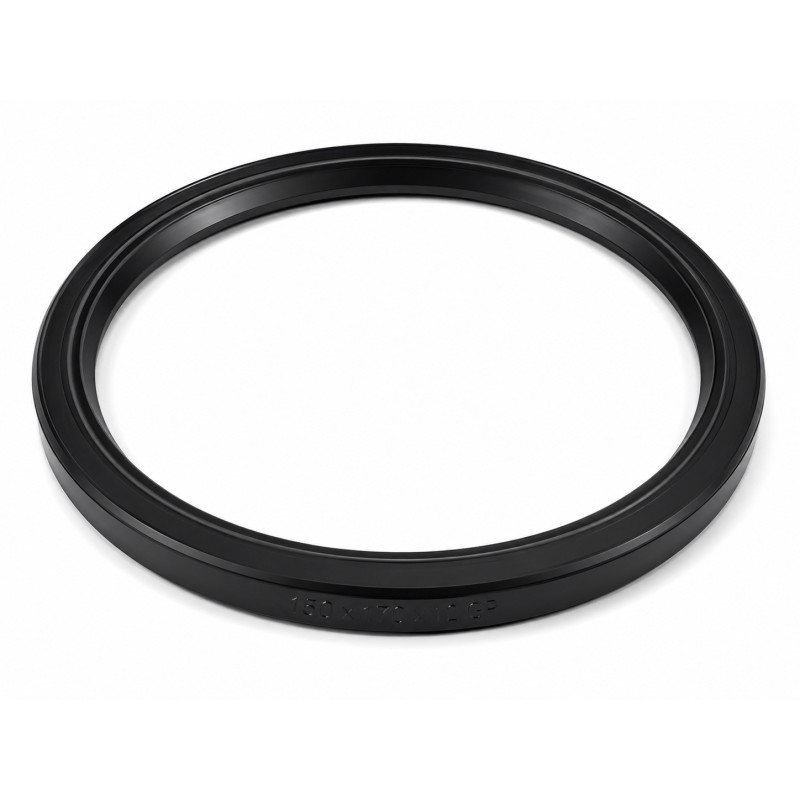

The ATS Oil Seal 150x170x12 GP NBR is engineered for rotating-shaft applications requiring dependable lubricant retention and contamination protection. It is suitable for large shafts used in industrial gearboxes, pumps, electric motors, bearing housings, transmission systems, conveyors, and compatible OEM machinery.

The GP Profile typically uses a primary sealing lip supported by a garter spring together with an auxiliary dust lip. The main lip maintains controlled radial contact with the rotating shaft to retain oil or grease, while the secondary lip helps reduce the entry of dust, dirt, moisture, and other contaminants.

Its rubber-covered reinforced outer diameter supports static sealing between the oil seal and housing bore. This construction can also help accommodate minor housing-surface irregularities while providing a secure press fit.

Manufactured from NBR (Nitrile Butadiene Rubber), the seal offers good compatibility with:

Mineral oils

Gear oils

Hydraulic oils

Bearing grease

Petroleum-based lubricants

General industrial lubricants

NBR provides good oil resistance, flexibility, and abrasion resistance for standard industrial operating conditions. It is not normally recommended for continuous exposure to high temperatures, aggressive chemicals, ozone-rich environments, or certain synthetic fluids unless compatibility has been confirmed.

The dimensions 150 × 170 × 12 mm represent a 150 mm shaft diameter, 170 mm housing diameter, and 12 mm seal width. The relatively narrow radial section makes accurate shaft alignment, housing condition, and installation particularly important.

⚙️ Applications

Industrial gearboxes

Large electric motors

Industrial pumps

Bearing housings

Conveyor drive systems

Power transmission equipment

Agricultural machinery

Construction machinery

Industrial fans and blowers

OEM rotating machinery

🎯 Benefits

✔ Helps prevent oil and grease leakage

✔ Double-lip contamination protection

✔ Protects shafts and bearing assemblies

✔ Good resistance to mineral oils and grease

✔ Rubber-covered outside diameter

✔ Spring-loaded primary sealing lip

✔ Suitable for large metric shafts

✔ Supports longer equipment service life

✔ Suitable for maintenance and OEM replacement

🧠 Technical Insight

GP Double Lip Profile

Spring-Loaded Main Sealing Lip

Auxiliary Dust Lip

Rubber-Covered Reinforced Case

Radial Rotary Shaft Sealing

NBR Oil-Resistant Compound

Metric Large-Diameter Seal

Designed for Low-Pressure Lubricant Retention

✅ Key Features

ATS Industrial Seal

GP Profile

Double Lip Construction

Garter Spring Main Lip

Rubber-Covered Outer Diameter

NBR Sealing Material

Large Metric Size

OEM Replacement Ready

📊 Specifications

Brand: ATS

Model: GP

Size: 150 × 170 × 12 mm

Type: Rotary Shaft Oil Seal

Material: NBR (Nitrile Butadiene Rubber)

Profile: GP

Construction: Rubber-Covered Reinforced Case

Lip Design: Main Sealing Lip + Auxiliary Dust Lip

Dust Lip: Yes

Spring Type: Garter Spring

Shaft Diameter (ID): 150 mm

Housing Diameter (OD): 170 mm

Width: 12 mm

Pressure Capability: Low-pressure rotary shaft sealing

Lubrication: Oil and Grease

Temperature Range: Typically approximately -30°C to +100°C for standard NBR; verify the actual compound and operating conditions

Application Class: General and Heavy Industrial Equipment

Standard: Metric Rotary Shaft Seal

🔁 Equivalent

Suitable replacement for compatible:

GP 150x170x12 NBR Oil Seal

TC 150x170x12 NBR Seal

BASL 150x170x12 Rotary Shaft Seal

SKF 150x170x12 Oil Seal

NOK 150x170x12 Oil Seal

Freudenberg 150x170x12 Seal

CFW Rotary Shaft Seal

DICHTOMATIK Oil Seal

Corteco Oil Seal

OEM Double Lip Shaft Seal

Equivalent dimensions do not automatically guarantee interchangeability because lip geometry, outside-diameter construction, spring arrangement, and material compound may differ between manufacturers.

(Always verify dimensions, profile, lip direction, shaft condition, lubricant compatibility, rotational speed, temperature, and operating conditions before ordering.)
