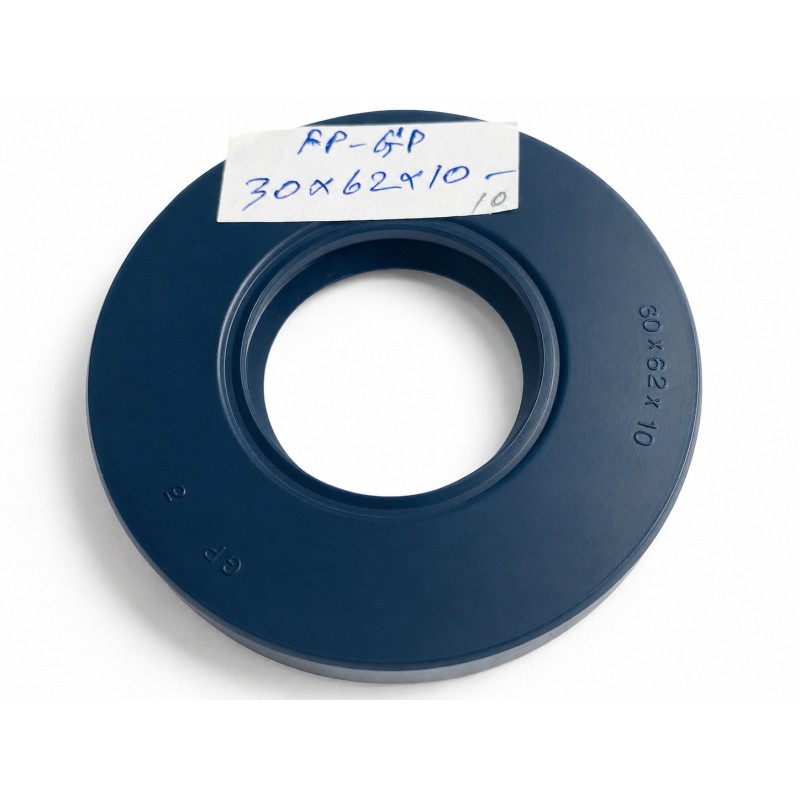

The FP Oil Seal 30x62x10 GP NBR is designed for industrial rotary shaft applications requiring dependable lubricant retention around a 30 mm shaft.

Installed between the rotating shaft and stationary housing, the sealing element creates controlled radial contact with the shaft surface. This helps reduce leakage of oil or compatible grease while limiting the entry of dust, dirt, moisture, and abrasive particles into the bearing, gearbox, pump, transmission, or drive assembly.

The product is identified by the FP manufacturer designation GP. Because industrial seal profile codes are manufacturer-specific, the exact sealing-lip geometry, number of lips, outside-diameter construction, reinforcing components, spring arrangement, dust-exclusion feature, and installation direction should be compared with the original seal or technical drawing before replacement.

Manufactured from NBR (Nitrile Butadiene Rubber), the sealing element is generally compatible with:

• Mineral oils
• Gear oils
• Hydraulic oils
• Bearing grease
• Petroleum-based lubricants
• General industrial lubricating fluids

NBR provides good resistance to petroleum-based oils, grease, wear, and abrasion under standard industrial operating conditions. Compatibility should be confirmed before use with aggressive chemicals, high continuous temperatures, ozone-rich environments, or specialized synthetic lubricants.

The metric dimensions are:

Shaft diameter: 30 mm

Housing diameter: 62 mm

Seal width: 10 mm

The 30 × 62 × 10 mm dimensions make this seal suitable for compact bearing housings, gearboxes, pumps, transmissions, and OEM machinery using a metric rotary shaft-sealing arrangement. Accurate dimensional measurement and GP-profile verification are essential before installation.

⚙️ Applications

• Industrial gearboxes
• Bearing housings
• Industrial pumps
• Mechanical transmissions
• Electric motor assemblies
• Agricultural machinery
• Construction equipment
• Conveyor drive systems
• Legacy industrial equipment
• OEM rotating machinery

🎯 Benefits

✔ Helps retain oil or compatible grease

✔ Protects bearings and rotating components

✔ Oil-resistant NBR sealing material

✔ Suitable for 30 mm shaft assemblies

✔ Metric industrial dimensions

✔ Good resistance to wear and abrasion

✔ Suitable for maintenance and overhaul work

✔ Supports longer bearing service life

✔ OEM replacement ready when dimensions and profile match

🧠 Technical Insight

• FP GP Seal Reference
• Metric Rotary Shaft Seal
• NBR Sealing Material
• Radial Shaft-Sealing Function
• Lubricant Retention Design
• Industrial Bearing and Drive Application
• 30 mm Shaft Diameter
• GP Profile Verification Required

✅ Key Features

• FP Industrial Quality
• GP Profile Reference
• Reinforced Rotary Shaft Construction
• Oil-Resistant NBR Material
• Metric 30x62x10 Dimensions
• Suitable for Compatible Oil and Grease
• Industrial Replacement Seal
• OEM Cross-Reference Ready

📊 Specifications

Brand: FP

Model: GP

Size: 30 × 62 × 10 mm

Type: Industrial Rotary Shaft Oil Seal

Material: NBR (Nitrile Butadiene Rubber)

Profile: GP

Construction: Manufacturer-Specific Reinforced Shaft-Seal Construction

Lip Design: GP profile; verify against the original seal

Dust Lip: Verify from the actual GP-profile cross-section

Spring Type: Verify from the actual seal construction

Shaft Diameter (ID): 30 mm

Housing Diameter (OD): 62 mm

Width: 10 mm

Pressure Capability: Low-pressure rotary shaft-sealing service unless otherwise specified

Lubrication: Oil and compatible grease

Temperature Range: Typically approximately -30°C to +100°C for standard NBR; verify the actual compound and operating conditions

Application Class: Industrial Bearing and Rotating Equipment

Standard: Metric Industrial Seal

🔁 Equivalent

Suitable replacement for compatible:

• FP GP Rotary Shaft Seal
• 30x62x10 Oil Seal
• Metric NBR Oil Seal
• 30 mm Shaft Oil Seal
• Industrial Bearing Housing Seal
• Industrial Gearbox Shaft Seal
• Pump Shaft Oil Seal
• Electric Motor Shaft Seal
• OEM GP Shaft Seal
• Industrial Rotary Shaft Seal

The same dimensions alone do not guarantee interchangeability. The replacement must match the original GP cross-section, lip orientation, outside-case construction, spring arrangement, reinforcing components, and material compound.

(Always verify dimensions, GP-profile geometry, lip direction, spring construction, shaft and housing condition, lubricant compatibility, rotational speed, temperature, and operating conditions before ordering.)
