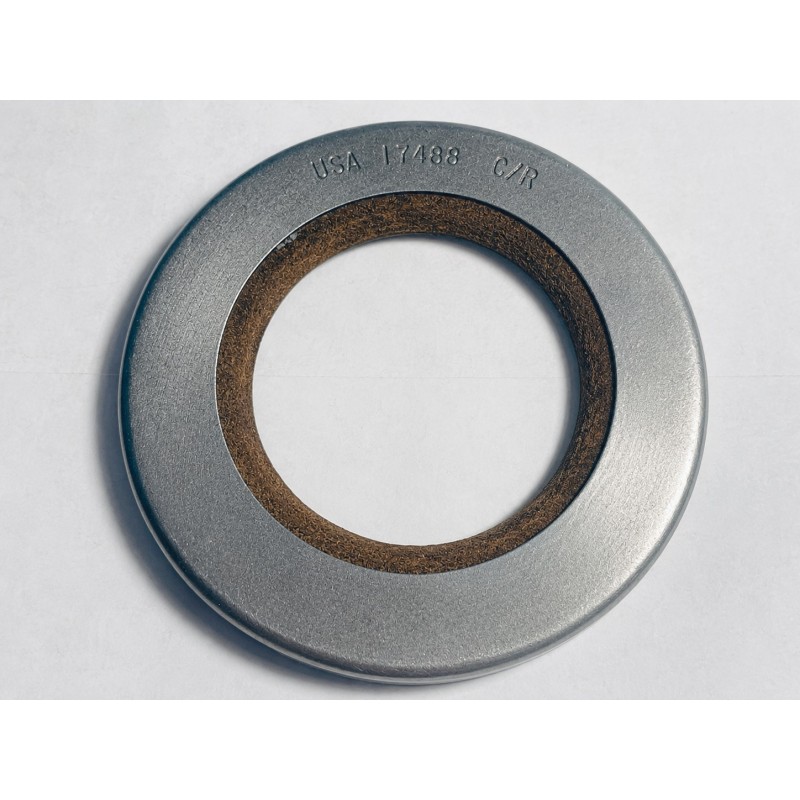

The CR Oil Seal 1.750x2.716x0.250 M/L Leather is designed for industrial rotating equipment requiring a durable sealing element, compact axial width, and reliable lubricant retention around a 1.750-inch shaft.

The M/L Profile generally refers to a metal-supported leather rotary shaft-seal arrangement. The metal structure helps preserve the seal’s shape, supports the leather element, and provides a stable fit within the housing. The leather sealing lip maintains controlled contact with the rotating shaft to help reduce leakage of oil or compatible grease.

Industrial leather can retain a small amount of lubricant around the shaft-contact area. Under suitable operating conditions, this helps maintain a lubricating film, reduce dry friction, and support consistent sealing performance.

Leather sealing elements can also conform to minor shaft wear and moderate surface irregularities. This makes the seal suitable for older machinery, rebuilt assemblies, and restoration applications where retaining the original sealing configuration is important.

The seal is generally suitable for compatible applications involving:

• Mineral oils
• Gear oils
• Bearing grease
• Industrial lubricating oils
• Petroleum-based lubricants
• Compatible grease-lubricated systems

Leather-seal performance depends on the leather grade, lubricant type, shaft speed, temperature, moisture exposure, shaft finish, installation condition, and operating environment. These factors should be reviewed before installation.

The inch dimensions correspond approximately to:

Shaft diameter: 1.750 inches or 44.45 mm

Housing diameter: 2.716 inches or 68.99 mm

Seal width: 0.250 inch or 6.35 mm

The narrow 0.250-inch axial width makes this seal suitable for compact bearing housings and machinery with limited installation space. Accurate dimensional measurement and verification of the original M/L cross-section are essential before replacement.

⚙️ Applications

• Industrial gearboxes
• Bearing housings
• Industrial pumps
• Mechanical transmissions
• Power transmission systems
• Agricultural machinery
• Construction equipment
• Conveyor drive assemblies
• Legacy industrial machinery
• OEM rotating equipment

🎯 Benefits

✔ Genuine industrial leather sealing element

✔ Helps retain oil and compatible grease

✔ Can conform to minor shaft-surface wear

✔ Metal-supported construction

✔ Compact 0.250-inch axial width

✔ Suitable for maintenance and overhaul work

✔ Useful for legacy-equipment restoration

✔ Supports bearing and component protection

✔ OEM replacement ready when dimensions and profile match

🧠 Technical Insight

• CR M/L Seal Reference
• Metal-Supported Leather Construction
• Genuine Oil-Treated Leather Sealing Element
• Normally Springless Shaft-Seal Arrangement
• Low-Pressure Lubricant Retention
• Compact Axial Seal Width
• 44.45 mm Shaft Diameter
• M/L Cross-Section Verification Required

✅ Key Features

• CR Industrial Seal
• M/L Leather Profile
• Genuine Industrial Leather Material
• Metal-Supported Construction
• Compact Inch-Size Dimensions
• Suitable for Compatible Oil and Grease
• Industrial Replacement Seal
• OEM Cross-Reference Ready

📊 Specifications

Brand: CR

Model: M/L

Size: 1.750 × 2.716 × 0.250 inch

Metric Equivalent: Approximately 44.45 × 68.99 × 6.35 mm

Type: Leather Rotary Shaft Oil Seal

Material: Genuine Oil-Treated Industrial Leather

Case Material: Metal

Profile: M/L

Construction: Manufacturer-Specific Metal-Supported Leather Shaft-Seal Arrangement

Lip Design: Leather sealing element; verify the exact M/L geometry against the original seal

Dust Lip: None unless shown in the original cross-section

Spring Type: Normally none; verify the actual seal construction

Shaft Diameter (ID): 1.750 inches / 44.45 mm

Housing Diameter (OD): 2.716 inches / approximately 68.99 mm

Width: 0.250 inch / 6.35 mm

Pressure Capability: Low-pressure lubricant-retention service

Lubrication: Mineral oil, gear oil, and compatible grease

Temperature Range: Depends on the leather grade, lubricant, shaft speed, moisture exposure, and operating conditions

Application Class: Industrial and Legacy Rotating Equipment

Standard: Inch-Size Industrial Seal

🔁 Equivalent

Suitable replacement for compatible:

• CR M/L Leather Rotary Shaft Seal
• CR 1.750x2.716x0.250 Leather Seal
• 44.45x68.99x6.35 Rotary Seal
• 1.750-Inch Shaft Leather Seal
• Compact Leather Oil Seal
• Industrial Bearing Housing Seal
• Industrial Gearbox Leather Seal
• Pump Shaft Leather Seal
• OEM M/L Leather Shaft Seal
• Industrial Leather Rotary Shaft Seal

The same dimensions alone do not guarantee interchangeability. The replacement must match the original M/L cross-section, leather-element geometry, lip orientation, metal-support construction, installation direction, and lubricant compatibility.

(Always verify dimensions, M/L-profile geometry, leather grade, lip direction, shaft and housing condition, installation depth, lubricant compatibility, rotational speed, temperature, and operating conditions before ordering.)
