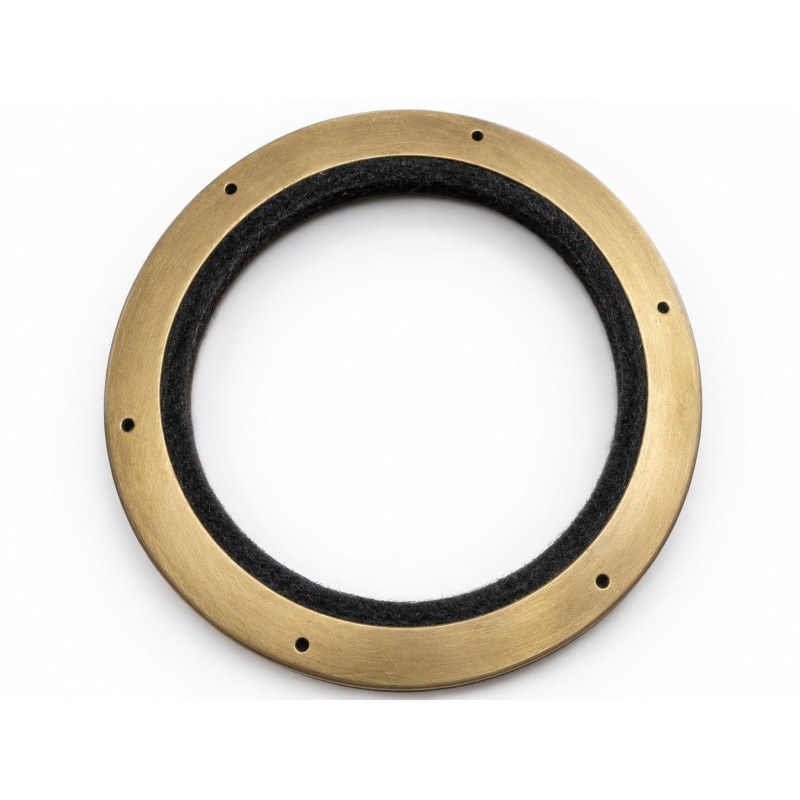

The AEROQUIP Oil Seal 2.688x3.548x0.500 M/F Fabric is designed for industrial rotating equipment requiring durable construction, reliable lubricant retention, and resistance to mechanical wear.

The manufacturer-specific M/F Profile is associated with a composite seal construction using industrial fabric sealing material and metal reinforcement. The metal component helps maintain dimensional stability and supports secure installation within the housing, while the fabric-based sealing element creates controlled contact around the rotating shaft.

Fabric seals are often selected for demanding industrial applications where structural strength, resistance to deformation, and compatibility with older machinery designs are important. Depending on the original construction, the fabric material may be impregnated or treated to improve resistance to oil, grease, abrasion, and environmental contamination.

Because M/F profile codes are manufacturer-specific, the exact arrangement of the metal case, fabric sealing element, internal reinforcement, lip geometry, and installation direction should be compared with the original seal or technical drawing before replacement.

This seal is generally suitable for compatible applications involving:

• Mineral oils
• Gear oils
• Bearing grease
• Industrial lubricating oils
• Petroleum-based lubricants
• Compatible grease-lubricated systems

The performance of a fabric seal depends on the fabric composition, impregnation treatment, lubricant type, shaft speed, temperature, shaft condition, moisture exposure, and operating environment. These factors should be verified before installation.

The inch dimensions correspond approximately to:

Shaft diameter: 2.688 inches or 68.28 mm

Housing diameter: 3.548 inches or 90.12 mm

Seal width: 0.500 inch or 12.70 mm

The specific shaft and housing dimensions indicate that this seal may be intended for a dedicated bearing housing, gearbox, pump, transmission, axle assembly, or OEM industrial machine. Accurate dimensional measurement and M/F profile verification are essential before replacement.

⚙️ Applications

• Industrial gearboxes
• Bearing housings
• Industrial pumps
• Mechanical transmissions
• Agricultural machinery
• Construction equipment
• Conveyor drive assemblies
• Power transmission systems
• Legacy industrial machinery
• OEM rotating equipment

🎯 Benefits

✔ Industrial fabric sealing construction

✔ Helps retain oil and compatible grease

✔ Metal reinforcement supports dimensional stability

✔ Suitable for demanding industrial applications

✔ Good resistance to mechanical wear

✔ Suitable for older and legacy machinery

✔ Suitable for maintenance and overhaul work

✔ Supports reliable shaft-sealing performance

✔ OEM replacement ready when dimensions and profile match

🧠 Technical Insight

• AEROQUIP M/F Seal Reference
• Metal + Fabric Composite Construction
• Industrial Fabric Sealing Material
• Reinforced Rotary Shaft-Seal Design
• Low-Pressure Lubricant Retention
• Suitable for Compatible Oil and Grease
• Approximately 68.28 mm Shaft Diameter
• Full M/F Cross-Section Verification Required

✅ Key Features

• AEROQUIP Industrial Quality
• M/F Fabric Profile
• Industrial Fabric Sealing Element
• Metal-Reinforced Construction
• Heavy-Duty Inch-Size Design
• Suitable for Industrial Maintenance
• Industrial Replacement Seal
• OEM Cross-Reference Ready

📊 Specifications

Brand: AEROQUIP

Model: M/F

Size: 2.688 × 3.548 × 0.500 inch

Metric Equivalent: Approximately 68.28 × 90.12 × 12.70 mm

Type: Fabric Rotary Shaft Oil Seal

Material: Industrial Fabric Sealing Material

Reinforcement Material: Metal

Profile: M/F

Construction: Manufacturer-Specific Metal + Fabric Seal Construction

Lip Design: Fabric sealing profile; verify against the original seal

Dust Lip: Verify from the actual M/F cross-section

Spring Type: None unless otherwise shown in the original construction

Shaft Diameter (ID): 2.688 inches / approximately 68.28 mm

Housing Diameter (OD): 3.548 inches / approximately 90.12 mm

Width: 0.500 inch / approximately 12.70 mm

Pressure Capability: Low-pressure lubricant-retention service unless otherwise specified

Lubrication: Mineral oil, gear oil, and compatible grease

Temperature Range: Depends on the fabric composition, impregnation treatment, lubricant, shaft speed, and operating conditions

Application Class: Heavy-Duty Industrial and Legacy Equipment

Standard: Inch-Size Industrial Seal

🔁 Equivalent

Suitable replacement for compatible:

• AEROQUIP M/F Fabric Rotary Shaft Seal
• 2.688x3.548x0.500 Fabric Oil Seal
• 68.28x90.12x12.70 Rotary Seal
• Industrial Fabric Oil Seal
• Metal-Reinforced Fabric Seal
• Industrial Bearing Housing Seal
• Industrial Gearbox Fabric Seal
• Heavy-Duty Composite Shaft Seal
• OEM M/F Shaft Seal
• Industrial Rotary Shaft Oil Seal

The same dimensions alone do not guarantee interchangeability. The replacement must match the original M/F cross-section, fabric composition, metal-reinforcement configuration, sealing geometry, installation direction, and lubricant compatibility.

(Always verify dimensions, M/F profile geometry, fabric construction, impregnation treatment, shaft and housing condition, lubricant compatibility, rotational speed, temperature, and operating conditions before ordering.)

📦 Availability

✅ In Stock

🚚 Fast Delivery Available

🌎 Worldwide Shipping Available

📦 MOQ: 1 Piece

🏭 Suitable for gearbox overhaul, bearing-housing maintenance, pump repair, transmission servicing, agricultural and construction machinery repair, legacy machinery restoration, and compatible OEM replacement applications.
