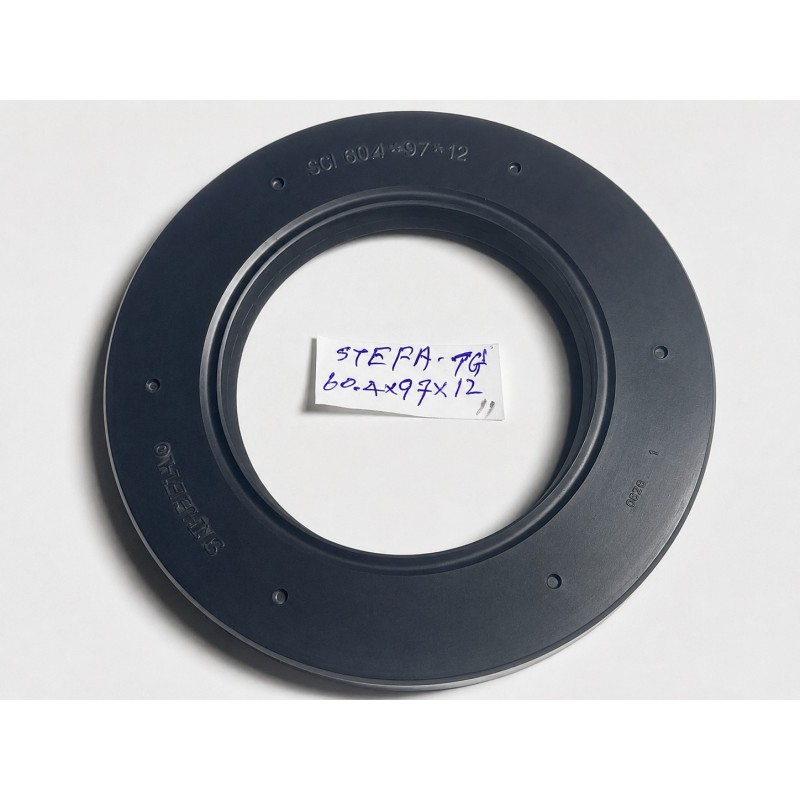

The STEFA 60.4x97x12 TG NBR Oil Seal is engineered to provide dependable sealing performance for rotating shafts operating in industrial equipment where oil retention and contamination exclusion are critical to equipment reliability.

The TG Profile is a heavy-duty rotary shaft seal design commonly used in industrial applications requiring robust sealing performance. The construction incorporates a reinforced metal case and a spring-loaded primary sealing lip that maintains consistent radial pressure against the shaft surface throughout operation. The spring-loaded lip design helps compensate for shaft wear and ensures long-term sealing effectiveness.

The metal outer case provides dimensional stability and secure retention within the housing bore while supporting reliable installation in industrial equipment. The sealing lip is designed to retain lubricants within the system while minimizing the ingress of dust, dirt, moisture, and abrasive contaminants that could damage bearings and rotating components.

Manufactured from premium NBR (Nitrile Butadiene Rubber), this oil seal offers excellent resistance to mineral oils, gear oils, hydraulic fluids, lubricating grease, and petroleum-based lubricants. NBR is widely used in industrial sealing applications due to its excellent oil resistance, wear resistance, flexibility, and cost-effective performance.

With dimensions of 60.4 x 97 x 12 mm, this seal is commonly used in industrial gearboxes, pumps, electric motors, compressors, agricultural machinery, conveyor drives, and OEM rotating equipment requiring metric-size sealing solutions.

⚙️ Applications

• Industrial gearboxes
• Industrial pumps
• Electric motors
• Agricultural machinery
• Air compressors
• Conveyor systems
• Power transmission equipment
• Construction machinery
• Mining equipment
• OEM machinery

🎯 Benefits

✔ Excellent oil retention

✔ Reliable shaft sealing performance

✔ Protects bearings and rotating components

✔ Reduces lubricant leakage

✔ Extends equipment service life

✔ Excellent wear resistance

✔ Suitable for continuous-duty operation

✔ Reliable industrial performance

✔ Long operational lifespan

🧠 Technical Insight

• TG Heavy-Duty Seal Design
• Reinforced Metal Case Construction
• Spring Loaded Main Lip
• Excellent Oil Resistance
• Suitable for Oil & Grease Lubrication
• Designed for Rotary Equipment
• Reliable Shaft Protection
• Industrial Duty Performance

✅ Key Features

• STEFA Industrial Quality
• TG Profile Design
• Reinforced Metal Case
• Premium NBR Material
• Spring Loaded Sealing Lip
• Excellent Wear Resistance
• OEM Replacement Ready
• Long Service Life

📊 Specifications

Brand: STEFA

Model: TG

Size: 60.4 x 97 x 12 mm

Type: Rotary Shaft Oil Seal

Material: NBR (Nitrile Rubber)

Profile: TG

Construction: Reinforced Metal Case

Lip Design: Spring Loaded Main Lip

Spring Type: Garter Spring

Shaft Diameter (ID): 60.4 mm

Housing Diameter (OD): 97 mm

Width: 12 mm

Pressure Capability: Up to 0.5 Bar

Lubrication: Oil & Grease

Temperature Range: -40°C to +100°C

Application Class: Heavy Industrial Service

Standard: Metric Oil Seal

🔁 Equivalent

Suitable replacement for:

• SKF TG Oil Seal
• CR Chicago Rawhide Oil Seal
• Freudenberg Oil Seal
• NOK Oil Seal
• CFW Rotary Shaft Seal
• KACO Oil Seal
• DICHTOMATIK Oil Seal
• OEM Rotary Shaft Oil Seal

(Always verify dimensions and seal profile before ordering.)
