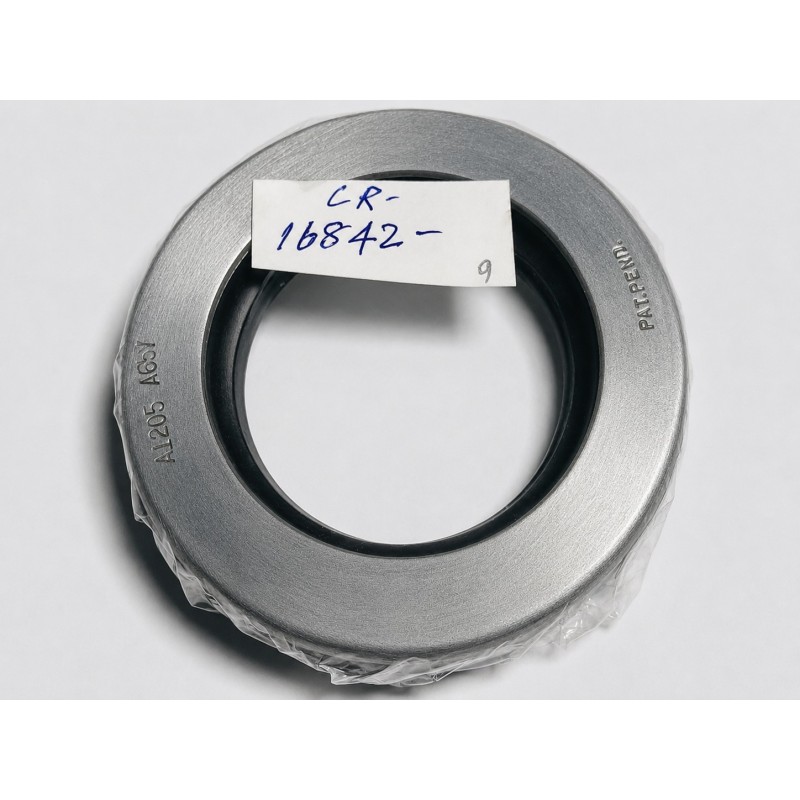

The CR 1.688x2.690x0.500 CRW1 NBR Oil Seal (Part No. 16842) is engineered for industrial rotating equipment requiring reliable lubricant retention and protection against external contaminants. As one of the most recognized sealing solutions from CR (Chicago Rawhide), the CRW1 profile has become an industry standard for industrial machinery, gearboxes, pumps, and rotating equipment worldwide.

The CRW1 Profile features a reinforced metal outer case combined with a spring-loaded primary sealing lip and an auxiliary dust lip. The primary sealing lip is energized by a garter spring that maintains consistent radial pressure against the shaft surface, ensuring reliable sealing performance throughout the operating life of the seal.

The auxiliary dust lip provides additional protection by preventing dust, dirt, moisture, and abrasive particles from entering the equipment. This dual-lip construction significantly improves bearing protection and extends equipment life in contaminated operating environments.

Manufactured from premium NBR (Nitrile Butadiene Rubber), this seal provides excellent resistance to mineral oils, gear oils, lubricating greases, hydraulic fluids, and petroleum-based lubricants. NBR is widely used in industrial sealing applications because of its excellent oil resistance, flexibility, abrasion resistance, and cost-effective performance.

The metal case construction ensures secure housing retention and dimensional stability, while the dual-lip sealing arrangement reduces lubricant leakage and protects internal components from contamination. This makes the CRW1 design particularly suitable for industrial gearboxes, pumps, electric motors, agricultural machinery, compressors, and continuous-duty rotating equipment.

With dimensions of 1.688 x 2.690 x 0.500 inch, this seal is commonly used in industrial maintenance, OEM machinery, power transmission equipment, conveyor systems, and heavy-duty industrial applications requiring inch-size shaft seals.

⚙️ Applications

• Industrial gearboxes
• Industrial pumps
• Speed reducers
• Electric motors
• Air compressors
• Agricultural machinery
• Conveyor systems
• Power transmission equipment
• Construction equipment
• OEM machinery

🎯 Benefits

✔ Excellent oil retention

✔ Additional dust protection

✔ Protects bearings and shafts

✔ Reduces lubricant leakage

✔ Extends equipment service life

✔ Excellent wear resistance

✔ Suitable for contaminated environments

✔ Reliable industrial performance

✔ Long operational lifespan

🧠 Technical Insight

• CRW1 Double Lip Design
• Spring Loaded Main Lip
• Auxiliary Dust Lip
• Reinforced Metal Case
• Oil & Grease Compatible
• Excellent Oil Resistance
• Reliable Contamination Protection
• Heavy Industrial Duty Performance

✅ Key Features

• CR Chicago Rawhide Quality
• CRW1 Profile Design
• Double Lip Construction
• Premium NBR Material
• Reinforced Metal Case
• Dust Exclusion Capability
• OEM Replacement Ready
• Long Service Life

📊 Specifications

Brand: CR (Chicago Rawhide)

Part Number: 16842

Model: CRW1

Size: 1.688 x 2.690 x 0.500 inch

Type: Double Lip Rotary Shaft Oil Seal

Material: NBR (Nitrile Rubber)

Profile: CRW1

Construction: Metal Case

Lip Design: Main Lip + Dust Lip

Spring Type: Garter Spring

Shaft Diameter (ID): 1.688 inch

Housing Diameter (OD): 2.690 inch

Width: 0.500 inch

Pressure Capability: Up to 0.5 Bar

Lubrication: Oil & Grease

Temperature Range: -40°C to +100°C

Application Class: Heavy Industrial Service

Standard: Inch Size Oil Seal

🔁 Equivalent

Suitable replacement for:

• SKF Double Lip Oil Seal
• National Oil Seal
• NOK TC Type Oil Seal
• Freudenberg Oil Seal
• CFW Rotary Shaft Seal
• KACO Oil Seal
• Dichtomatik Oil Seal
• Garlock Oil Seal
• REPCO Oil Seal
• OEM Double Lip Oil Seal

(Always verify dimensions, seal profile, and part number before ordering.)

📦 Availability

✅ In Stock

🚚 Fast Delivery Available

🌎 Worldwide Shipping Available

📦 MOQ: 1 Piece

🏭 Suitable for gearbox overhaul, pump repair, motor maintenance, reducer service, compressor overhaul, and OEM replacement applications

📲 Contact via LINE ID: dusitrea

📧 Email: sales@seal4go.com

💬 Technical support available before ordering

🔍 Assistance available for cross-reference and equivalent part identification
