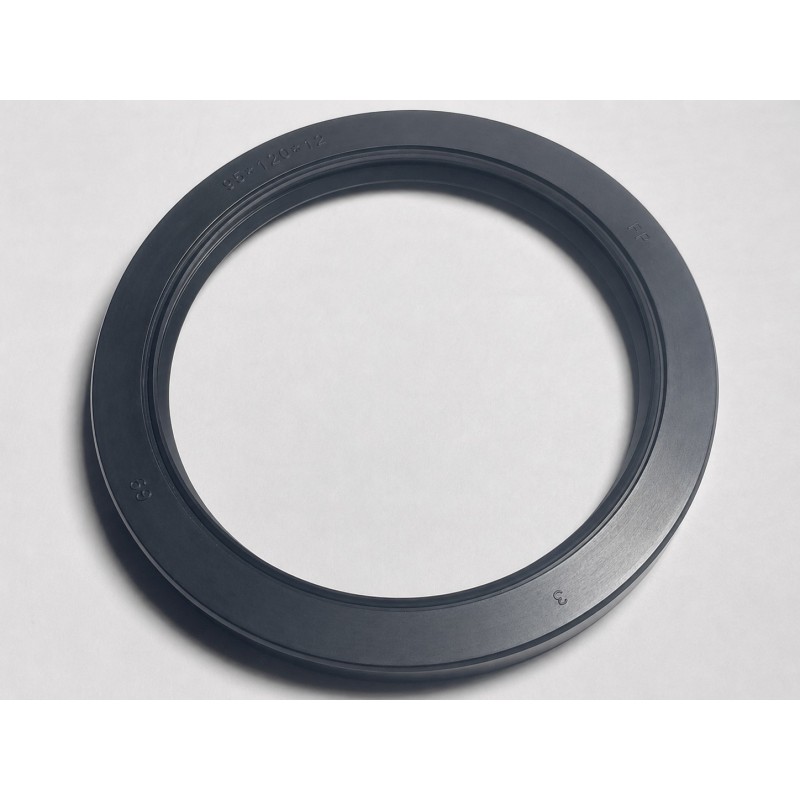

The FP 95x120x12 GP NBR Oil Seal is engineered to deliver reliable sealing performance for rotating shafts operating in industrial equipment where both lubricant retention and contamination protection are critical.

The GP Profile features a rubber-covered outer diameter, a spring-loaded primary sealing lip, and an additional dust lip. This design enhances protection against dust, dirt, moisture, and abrasive particles while maintaining effective oil and grease retention. The rubber-covered metal casing improves sealing between the housing bore and the seal body, helping compensate for minor housing imperfections.

The primary sealing lip, energized by a garter spring, maintains consistent contact pressure on the shaft surface, reducing lubricant leakage and extending equipment life. The auxiliary dust lip provides an additional barrier against environmental contaminants, making the GP profile a preferred choice for industrial and agricultural applications.

Manufactured from high-quality NBR (Nitrile Butadiene Rubber), this oil seal offers excellent resistance to mineral oils, hydraulic fluids, gear oils, grease, and petroleum-based lubricants. NBR is widely recognized for its durability, wear resistance, flexibility, and cost-effective sealing performance in industrial environments.

With dimensions of 95 x 120 x 12 mm, this seal is commonly used in industrial gearboxes, pumps, electric motors, agricultural equipment, conveyor drives, compressors, and OEM machinery.

⚙️ Applications

• Industrial gearboxes
• Industrial pumps
• Electric motors
• Agricultural machinery
• Conveyor systems
• Air compressors
• Power transmission equipment
• Construction machinery
• Industrial drives
• OEM machinery

🎯 Benefits

✔ Double lip protection

✔ Excellent oil retention

✔ Enhanced dust exclusion

✔ Protects bearings and shafts

✔ Reduces lubricant leakage

✔ Extends equipment life

✔ Reliable sealing performance

✔ Suitable for continuous-duty operation

✔ Long service life

🧠 Technical Insight

• GP Double Lip Design
• Rubber Covered Metal Case
• Spring Loaded Main Lip
• Additional Dust Lip
• Suitable for Oil & Grease Lubrication
• Excellent Oil Resistance
• Improved Contamination Protection
• Designed for Industrial Rotating Equipment

✅ Key Features

• FP Industrial Quality
• GP Profile Design
• Double Lip Construction
• Premium NBR Material
• Rubber Covered OD
• Excellent Wear Resistance
• OEM Replacement Ready
• Long Service Life

📊 Specifications

Brand: FP

Model: GP

Size: 95 x 120 x 12 mm

Type: Double Lip Rotary Shaft Oil Seal

Material: NBR (Nitrile Rubber)

Profile: GP

Construction: Rubber Covered Metal Case

Lip Design: Main Lip + Dust Lip

Spring Type: Garter Spring

Shaft Diameter (ID): 95 mm

Housing Diameter (OD): 120 mm

Width: 12 mm

Pressure Capability: Up to 0.5 Bar

Lubrication: Oil & Grease

Temperature Range: -40°C to +100°C

Application Class: Industrial Service

Standard: Metric Oil Seal

🔁 Equivalent

Suitable replacement for:

• SKF Oil Seal
• CR Chicago Rawhide Oil Seal
• Freudenberg Oil Seal
• NOK Oil Seal
• CFW Rotary Shaft Seal
• KACO Oil Seal
• DICHTOMATIK Oil Seal
• OEM Double Lip Oil Seal

(Always verify dimensions and seal profile before ordering.)
