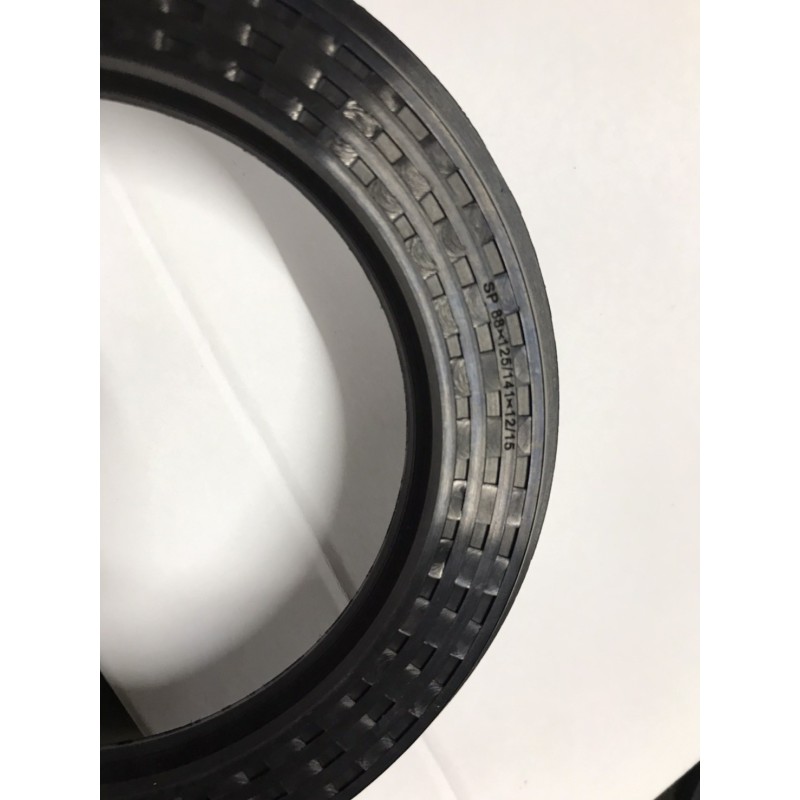

The OEM Oil Seal 88x125/141x12/15 SP NBR is engineered for demanding industrial and mobile equipment applications where both lubricant retention and contamination protection are critical.

The SP profile is commonly used in wheel hub, axle, gearbox, and heavy-duty rotating equipment applications. Its special flanged design incorporates a larger protective outer section that helps shield the sealing area from external contamination while improving installation stability. This design is particularly beneficial in environments exposed to dust, mud, water spray, and abrasive particles.

The primary sealing lip is energized by a garter spring that maintains consistent radial contact pressure on the shaft surface, ensuring reliable sealing performance throughout the service life of the equipment. The robust construction helps reduce lubricant leakage while protecting bearings and shafts from premature wear.

Manufactured from premium NBR (Nitrile Butadiene Rubber), the sealing element provides excellent resistance to mineral oils, lubricating grease, hydraulic fluids, and petroleum-based lubricants. NBR remains the preferred material for industrial oil seal applications due to its balance of durability, flexibility, wear resistance, and cost-effectiveness.

With dimensions of 88 x 125/141 x 12/15 mm, this seal is commonly installed in wheel hubs, drive axles, industrial gearboxes, agricultural equipment, heavy-duty pumps, and construction machinery.

⚙️ Applications

• Industrial Washing Machine
• Wheel hub assemblies
• Drive axles
• Industrial gearboxes
• Agricultural machinery
• Construction equipment
• Heavy-duty pumps
• Mining machinery
• Conveyor drive systems
• Industrial rotating equipment
• OEM machinery

🎯 Benefits

✔ Excellent oil retention

✔ Superior contamination protection

✔ Heavy-duty industrial design

✔ Protect against mud, dust and water

✔ Extend bearing and shaft life

✔ Reduce lubricant leakage

✔ Lower maintenance costs

✔ Improve equipment reliability

✔ Suitable for harsh environments

🧠 Technical Insight

• SP Profile with protective flange design
• Large OD flange improves contamination protection
• Spring-loaded sealing lip ensures constant sealing force
• NBR offers excellent oil and grease resistance
• Suitable for heavy-duty industrial applications
• Commonly used in axle and wheel hub sealing systems

✅ Key Features

• SP Heavy Duty Profile
• Large Protective Flange Design
• Spring Loaded Sealing Lip
• Premium NBR Material
• Industrial Grade Construction
• OEM Replacement Ready

📊 Specifications

Brand: OEM

Model: SP

Size: 88 x 125/141 x 12/15 mm

Type: Heavy Duty Rotary Shaft Oil Seal

Material: NBR (Nitrile Rubber)

Construction: Metal Reinforced Oil Seal

Spring Type: Garter Spring

Shaft Diameter (ID): 88 mm

Housing Diameter (OD): 125 mm

Flange Diameter: 141 mm

Width: 12 / 15 mm

Application Class: Heavy Duty Industrial Service

🔁 Equivalent

Suitable replacement for:

STEFA SP Type

SKF Heavy Duty Oil Seal

NOK Heavy Duty Seal

CR Oil Seal

CFW Industrial Seal

KACO Oil Seal

DICHTOMATIK Industrial Seal

(Always verify dimensions and seal profile before ordering.)

📦 Availability

✅ In Stock

🚚 Fast Delivery Available

📦 MOQ: 1 Piece

📲 Contact via LINE ID: dusitrea

🏭 Suitable for industrial maintenance and OEM replacement
